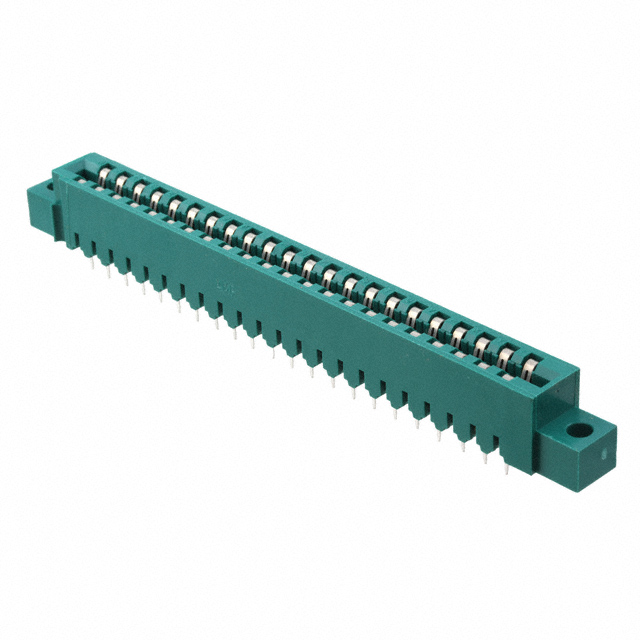

7-530689-6
Or copy the link below:
- Mfr.Part #
- 7-530689-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 44POS 0.156
- Stock
- 2,080
- In Stock ：
- 2,080
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- ECCN Code :
- EAR99
- Connector Type :
- Connector, Receptacle, Socket
- Material - Insulation :
- Polyester, Glass Filled
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Height :
- 11.68mm
- Mixed Contacts :
- No
- IEC Conformance :
- No
- Pitch :
- 0.156 3.96mm
- Published :
- 2008
- Radiation Hardening :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Option :
- GENERAL PURPOSE
- HTS Code :
- 8536.69.40.40
- Read Out :
- Dual
- Number of Rows :
- 2
- Card Thickness :
- 0.055 ~ 0.070 1.40mm ~ 1.78mm
- Contact Plating :
- Gold, Tin
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Orientation :
- Vertical
- Gender :
- FEMALE
- Plating Thickness :
- 760 nm
- Packaging :
- Bulk
- Color :
- Black
- Row Spacing :
- 5.08 mm
- RoHS Status :
- RoHS Compliant
- Housing Color :
- Green
- Lead Length :
- 3.81mm
- ELV :
- Compliant
- Factory Lead Time :
- 16 Weeks
- Flange Feature :
- Flush Mount, Top Opening, Unthreaded, 0.128 (3.25mm) Dia
- Contact Material :
- Phosphor Bronze
- DIN Conformance :
- No
- Card Type :
- Non Specified - Dual Edge
- MIL Conformance :
- No
- Mounting Type :
- Through Hole
- Current Rating :
- 5A
- Termination :
- Solder
- Underplate Material :
- Nickel
- Contact Current Rating :
- 5A
- Min Operating Temperature :
- -55°C
- Number of Positions :
- 44
- Housing Material :
- Glass
- Mount :
- Through Hole
- Total Number of Contacts :
- 44
- Contact Finish :
- Gold
- Filter Feature :
- No
- Max Operating Temperature :
- 105°C
- Datasheets
- 7-530689-6
