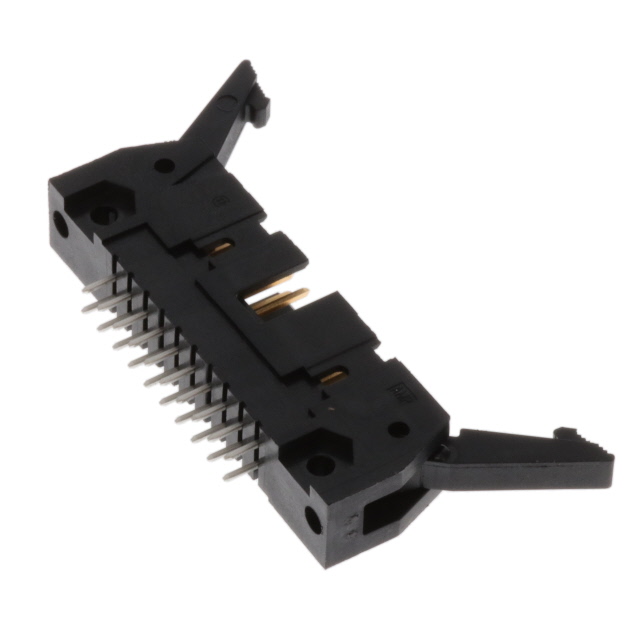

6364106-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Polarization Key :

POLARIZED HOUSING

Contact Shape :

Square

MIL Conformance :

No

Mixed Contacts :

No

PCB Thickness :

1.57mm

Mount :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Contact Pattern :

RECTANGULAR

Housing Material :

Nylon

Current Rating (Amps) :

1A per Contact

Body Depth :

0.549 inch

Reference Standard :

UL

Plating Thickness :

2.54μm

Contact Length - Mating :

0.240 6.10mm

Connector Type :

Header

Termination :

Solder

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Published :

2009

Option :

GENERAL PURPOSE

PCB Mount Retention :

Without

Overall Contact Length :

0.651 16.53mm

IEC Conformance :

No

Contact Finish Thickness - Mating :

15.0μin 0.38μm

UL Flammability Code :

94V-0

Number Of PCB Rows :

2

Body Breadth :

0.336 inch

Contact Finish - Post :

Tin

Mating Contact Pitch :

0.1 inch

Contact Type :

Male Pin

Length :

44.704mm

Number of Rows :

2

Reliability :

COMMERCIAL

Packaging :

Bulk

Number of Positions :

20

Operating Supply Voltage :

250V

Insulation Height :

0.549 13.94mm

Height :

13.94mm

Operating Temperature :

-65°C~105°C

DIN Conformance :

No

Feature :

Keying Slot, Mounting Flange

Insulation Resistance :

5GOhm

Mounting Type :

Through Hole

Gender :

Male

ELV :

Compliant

Current Rating :

1A

Orientation :

Vertical

Fastening Type :

Latch Lock/Eject Hooks

Contact Current Rating :

1A

Circuit Application :

Signal

Mating Connector Lock :

With

Number of Positions Loaded :

All

ECCN Code :

EAR99

Factory Lead Time :

9 Weeks

Dielectric Withstanding Voltage :

1000VAC V

Contact Finish Thickness - Post :

100.0μin 2.54μm

Series :

AMP-Latch

Lead Length :

2.79mm

Contact Finish - Mating :

Gold or Gold-Palladium

Insulation Color :

Black

Material Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Row Spacing - Mating :

0.100 (2.54mm)

Number of Conductors :

ONE

Style :

Board to Cable/Wire

Pitch - Mating :

0.100 2.54mm

RoHS Status :

RoHS Compliant

HTS Code :

8536.69.40.40

Contact Material :

Brass

Filter Feature :

No

Shrouding :

Shrouded - 4 Wall

Shrouded End Dimension :

3.81 mm

Flammability Rating :

UL94 V-0

Voltage - Rated :

250VAC

Contact Length - Post :

0.122 3.10mm
