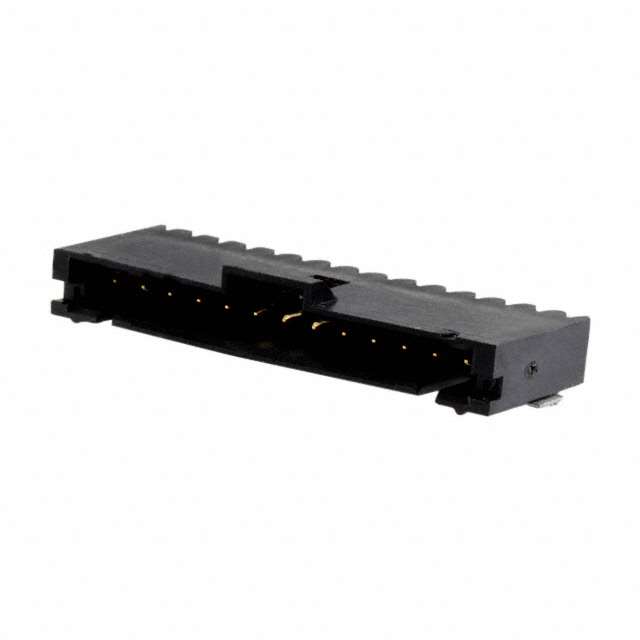

6-147323-2
Or copy the link below:
- Mfr.Part #
- 6-147323-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD R/A 13POS 2.54MM
- Stock
- 26,592
- In Stock ：
- 26,592
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Material Flammability Rating :
- UL94 V-0
- Filter Feature :
- No
- MIL Conformance :
- No
- Current Rating (Amps) :
- 3A
- Gender :
- Male
- Packaging :
- Tape and Reel (TR)
- Contact Shape :
- Square
- Factory Lead Time :
- 42 Weeks
- Published :
- 2011
- Terminal Pitch :
- 2.54mm
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- ECCN Code :
- EAR99
- Connector Type :
- Header
- Mixed Contacts :
- No
- Contact Finish - Mating :
- Gold
- Insulation Color :
- Black
- JESD-609 Code :
- e3
- Number of Rows :
- 1
- Operating Temperature :
- -65°C~105°C
- Insulation Material :
- Thermoplastic
- Insulation Height :
- 0.200 5.08mm
- Series :
- AMPMODU MTE
- UL Flammability Code :
- 94V-0
- RoHS Status :
- RoHS Compliant
- Pbfree Code :
- yes
- Fastening Type :
- Latch Holder
- Number of Positions :
- 13
- DIN Conformance :
- No
- IEC Conformance :
- No
- Total Number of Contacts :
- 13
- Contact Finish - Post :
- Tin
- Number of Positions Loaded :
- All
- Termination :
- Solder
- HTS Code :
- 8536.69.40.40
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Surface Mount, Right Angle
- Applications :
- Automotive, General Purpose, Medical, Telecommunications
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Feature :
- Board Lock, Keying Slot, Solder Retention
- Additional Feature :
- AMPMODU, LATCHED, POLARIZED
- Pitch - Mating :
- 0.100 2.54mm
- Shrouding :
- Shrouded - 4 Wall
- Style :
- Board to Board or Cable
- Contact Material :
- Brass
- Contact Length - Mating :
- 0.230 5.84mm
- Datasheets
- 6-147323-2
AMPMODU MTE Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Gold Thermoplastic 13-Position Board to Board or Cable 0.200 5.08mm Height
6-147323-2 Overview
This product is packaged in a Header box.Surface Mount, Right Angle indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the AMPMODU MTE Series.Furthermore, there are other features such as AMPMODU, LATCHED, POLARIZED, to name a few.There is the possibility of using the device for Automotive, General Purpose, Medical, Telecommunications.In many ways, Board Lock, Keying Slot, Solder Retention makes it more powerful.Operating temperature is set to -65°C~105°C.
6-147323-2 Features
AMPMODU MTE series
6-147323-2 Applications
There are a lot of TE Connectivity AMP Connectors
6-147323-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
