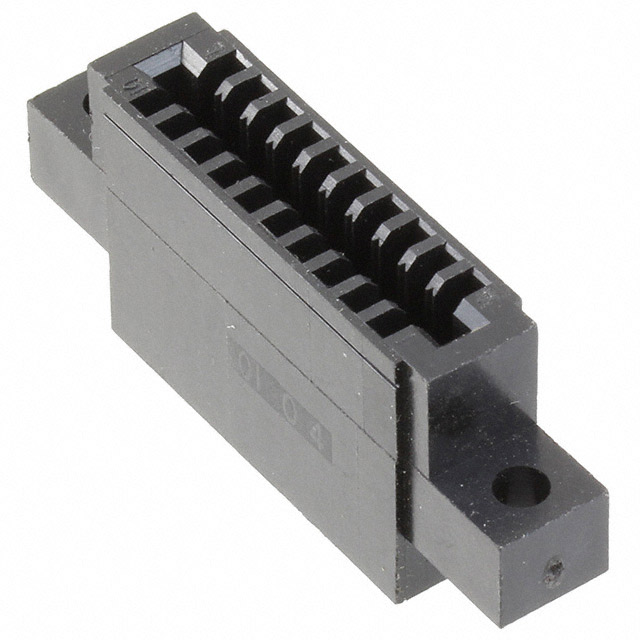

583861-7
Or copy the link below:
- Mfr.Part #
- 583861-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN CARDEDGE HSG 20POS .100 BLK
- Stock
- 1,321
- In Stock ：
- 1,321
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Card Edge Connector Housings
- Contact Material :
- NOT SPECIFIED
- Connector Type :
- CARD EDGE CONNECTOR
- Insulation Resistance :
- 1000000000Ohm
- DIN Conformance :
- No
- Card Thickness :
- 0.055 ~ 0.070 1.40mm ~ 1.78mm
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- Body Breadth :
- 0.35 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Rated Current (Signal) :
- 5A
- Mounting Type :
- Panel Mount
- Housing Material :
- Polyester
- Published :
- 2004
- Termination :
- Crimp
- Withdrawl Force-Min :
- .1946 N
- Flange Feature :
- Top Mount Opening, Unthreaded, 0.128 (3.25mm) Dia
- Height :
- 19.05mm
- HTS Code :
- 8536.69.40.40
- Flammability Rating :
- UL94 V-0
- Contact Finish - Mating :
- NOT SPECIFIED
- UL Flammability Code :
- 94V-0
- RoHS Status :
- RoHS Compliant
- ELV :
- Compliant
- Feature :
- Flange
- Lead Pitch :
- 2.54mm
- IEC Conformance :
- No
- Operating Temperature :
- -40°C~85°C
- Factory Lead Time :
- 10 Weeks
- Material - Insulation :
- Polyester Thermoplastic, Glass Filled
- Card Type :
- Non Specified - Dual Edge
- Pitch :
- 0.100 2.54mm
- Dielectric Withstanding Voltage :
- 1000VAC V
- Series :
- TWIN LEAF
- Current Rating :
- 5A
- Mount :
- Panel
- Packaging :
- Bulk
- Orientation :
- Straight
- Gender :
- FEMALE
- Total Number of Contacts :
- 20
- Filter Feature :
- No
- Color :
- Black
- Contact Current Rating :
- 5A
- Number of Positions :
- 20
- Contact Pattern :
- RECTANGULAR
- Pbfree Code :
- yes
- Depth :
- 19.05mm
- ECCN Code :
- EAR99
- Lead Free :
- Not Applicable
- Reference Standard :
- UL, CSA
- Contact Resistance :
- 10MOhm
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 2
- MIL Conformance :
- No
- Note :
- Contacts Not Included
- Length :
- 46.482mm
- Reliability :
- COMMERCIAL
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Datasheets
- 583861-7
