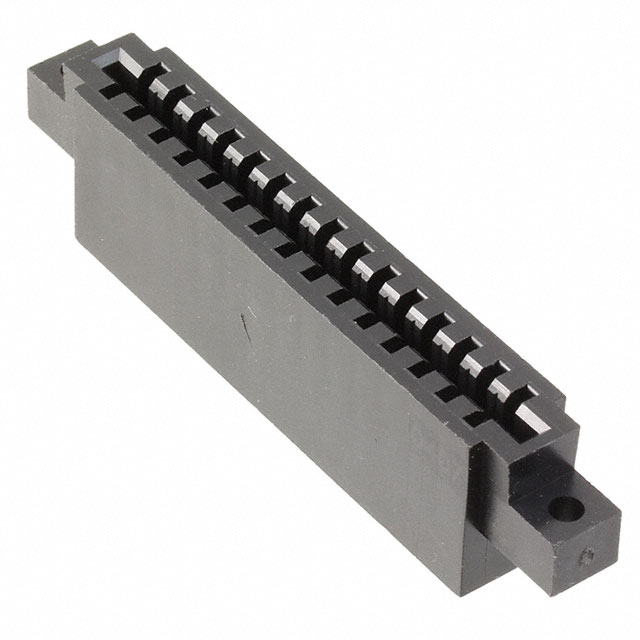

583859-7
Or copy the link below:
- Mfr.Part #
- 583859-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN CARDEDGE HSG 30POS .156 BLK
- Stock
- 62
- In Stock ：
- 62
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Card Edge Connector Housings
- Contact Finish - Mating :
- NOT SPECIFIED
- Insulation Resistance :
- 1000000000Ohm
- Termination :
- Crimp
- IEC Conformance :
- No
- Card Type :
- Non Specified - Dual Edge
- Withdrawl Force-Min :
- .1946 N
- Body Breadth :
- 0.437 inch
- Published :
- 2004
- MIL Conformance :
- No
- Housing Material :
- Polyester
- Series :
- TWIN LEAF
- Contact Resistance :
- 10MOhm
- Connector Type :
- CARD EDGE CONNECTOR
- Orientation :
- Straight
- ECCN Code :
- EAR99
- Height :
- 19.05mm
- Contact Gender :
- FEMALE
- Contact Material :
- NOT SPECIFIED
- Contact Pattern :
- RECTANGULAR
- Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C~85°C
- ELV :
- Compliant
- RoHS Status :
- RoHS Compliant
- Length :
- 81.0006mm
- Contact Style :
- BELLOWED TYPE
- Rated Current (Signal) :
- 5A
- Mount :
- Cable, Panel
- Color :
- Black
- Option :
- GENERAL PURPOSE
- Contact Current Rating :
- 5A
- Pitch :
- 0.156 3.96mm
- DIN Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Number of Positions :
- 30
- Total Number of Contacts :
- 15
- Mating Retention :
- Without
- UL Flammability Code :
- 94V-0
- Flange Feature :
- Top Mount Opening, Unthreaded, 0.128 (3.25mm) Dia
- Feature :
- Flange
- Reference Standard :
- UL, CSA
- Number of Rows :
- 2
- Body Depth :
- 0.75 inch
- Factory Lead Time :
- 4 Weeks
- Card Thickness :
- 0.055 ~ 0.070 1.40mm ~ 1.78mm
- Material Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Note :
- Contacts Not Included
- Lead Free :
- Not Applicable
- Reliability :
- COMMERCIAL
- Mounting Type :
- Panel Mount
- Current Rating :
- 5A
- Material - Insulation :
- Polyester Thermoplastic, Glass Filled
- Dielectric Withstanding Voltage :
- 1000VAC V
- Pbfree Code :
- yes
- HTS Code :
- 8536.69.40.40
- Filter Feature :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mixed Contacts :
- No
- Datasheets
- 583859-7
