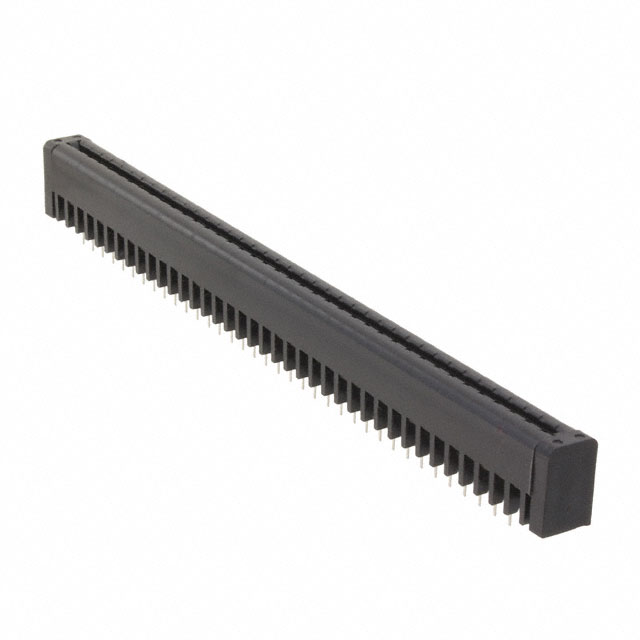

583660-1
Or copy the link below:
- Mfr.Part #
- 583660-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 36POS GOLD
- Stock
- 20,467
- In Stock ：
- 20,467
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- ECCN Code :
- EAR99
- Contact Current Rating :
- 3A
- ELV :
- Non-Compliant
- Contact Material :
- Phosphor Bronze
- Number of Rows :
- 2
- Operating Temperature :
- -55°C~105°C
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Reference Standard :
- UL
- Body Depth :
- 0.61 inch
- Underplate Material :
- Nickel
- Filter Feature :
- No
- Plating Thickness :
- 15μin
- Contact Plating :
- Tin, Gold
- Body Breadth :
- 0.4 inch
- Contact Resistance :
- 10MOhm
- Mount :
- Through Hole
- Color :
- Black
- PCB Contact Row Spacing :
- 5.08 mm
- Number of Conductors :
- ONE
- Pitch :
- 3.9624mm
- Lead Length :
- 3.43mm
- DIN Conformance :
- No
- UL Flammability Code :
- 94V-0
- Mixed Contacts :
- No
- Connector Type :
- Connector, Receptacle, Socket
- Packaging :
- Bulk
- Option :
- GENERAL PURPOSE
- Lifecycle Status :
- ACTIVE (Last Updated: 7 months ago)
- Read Out :
- Dual
- Current Rating :
- 3A
- Termination :
- Solder
- Number of Positions :
- 36
- Rated Current (Signal) :
- 3A
- Length - Termination :
- 0.135 inch
- Published :
- 1997
- Durability :
- 100 Cycles
- RoHS Status :
- Non-RoHS Compliant
- Contact Finish :
- Gold
- Factory Lead Time :
- 13 Weeks
- Series :
- TWIN LEAF
- Gender :
- FEMALE
- Additional Feature :
- AMP
- Total Number of Contacts :
- 36
- Insulation Resistance :
- 5000000000Ohm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- Orientation :
- Vertical
- PCB Contact Pattern :
- RECTANGULAR
- Housing Material :
- Glass
- Mounting Type :
- Through Hole
- Reliability :
- COMMERCIAL
- Card Type :
- Non Specified - Dual Edge
- Height :
- 15.494mm
- Pbfree Code :
- No
- IEC Conformance :
- No
- Material - Insulation :
- Polyester, Glass Filled
- Contact Pattern :
- RECTANGULAR
- Number Of PCB Rows :
- 2
- Card Thickness :
- 0.055 ~ 0.070 1.40mm ~ 1.78mm
- JESD-609 Code :
- e3
- Flammability Rating :
- UL94 V-0
- Datasheets
- 583660-1
583660-1 Documents
Female Black 3.9624mm Phosphor Bronze 2 Rows Bulk Solder Gold 36 Positions Polyester, Glass Filled
583660-1 Overview
Material was packaged according to Bulk's specifications.It's best to mount type Through Hole.Devices are connected through connector sockets Connector, Receptacle, Socket.The TWIN LEAF indicates the series number of the device.It is important to note that this chip has the following additional features: AMP
583660-1 Features
TWIN LEAF series
583660-1 Applications
There are a lot of TE Connectivity AMP Connectors
583660-1 Edgeboard Connectors applications.
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
