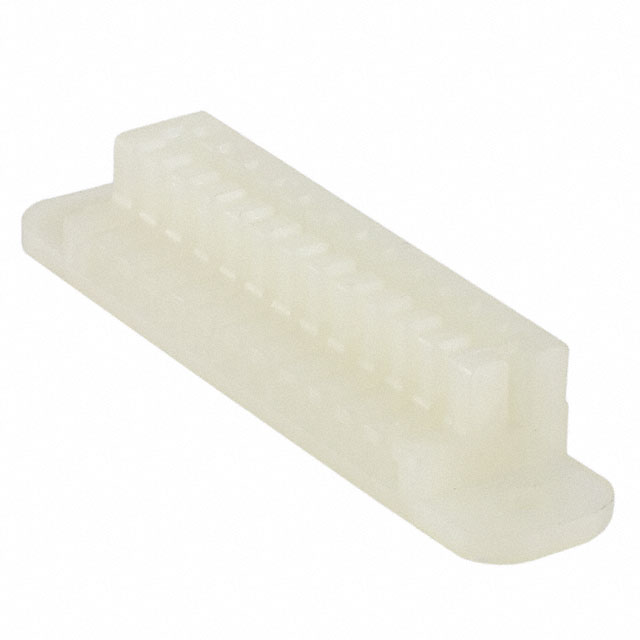

582384-9
Or copy the link below:
- Mfr.Part #
- 582384-9
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN CARDEDGE HSG 24POS .156 NAT
- Stock
- 592
- In Stock ：
- 592
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Card Edge Connector Housings
- Orientation :
- Straight
- Mixed Contacts :
- No
- Depth :
- 12.7mm
- Dielectric Withstanding Voltage :
- 2200VAC V
- Material - Insulation :
- Polyamide (PA), Nylon
- Housing Material :
- Nylon
- Filter Feature :
- No
- Body Length or Diameter :
- 2.788 inch
- Contact Gender :
- FEMALE
- Reference Standard :
- UL, CSA
- Number of Contacts :
- 12
- Factory Lead Time :
- 9 Weeks
- Contact Pattern :
- RECTANGULAR
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Rows :
- 1
- Card Thickness :
- 0.055 ~ 0.070 1.40mm ~ 1.78mm
- Row Spacing :
- 3.9624 mm
- Reliability :
- COMMERCIAL
- Rated Current (Signal) :
- 5A
- Contact Style :
- SQ PIN-SKT
- Color :
- Natural
- Contact Finish - Mating :
- NOT SPECIFIED
- Note :
- Contacts Not Included
- Connector Type :
- CARD EDGE CONNECTOR
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Pbfree Code :
- yes
- Insulation Diameter :
- 2.29 mm
- IEC Conformance :
- No
- Body Breadth :
- 0.59 inch
- Pitch :
- 0.156 3.96mm
- RoHS Status :
- RoHS Compliant
- ELV :
- Compliant
- Feature :
- Flange
- Series :
- DUO-TYNE
- Card Type :
- Non Specified - Dual Edge
- Packaging :
- Bulk
- Operating Temperature :
- -40°C~105°C
- DIN Conformance :
- No
- Lead Free :
- Lead Free
- Mount :
- Panel
- Mounting Type :
- Panel Mount
- Contact Material :
- NOT SPECIFIED
- HTS Code :
- 8536.69.40.40
- Published :
- 2000
- MIL Conformance :
- No
- Flange Feature :
- Top Mount Opening, Unthreaded, 0.156 (3.96mm) Dia
- Number of Positions :
- 24
- Datasheets
- 582384-9
