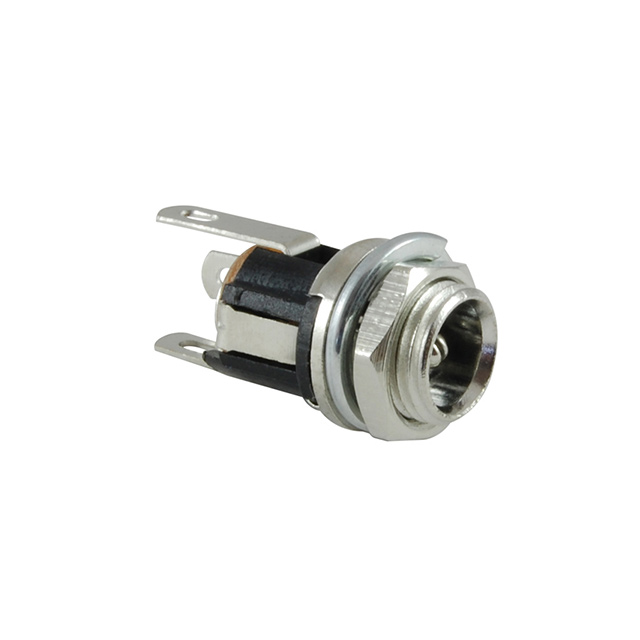

57-PJ30

Manufacturer :

NTE Electronics, Inc.

Product Category :

Power Connectors

Material Flammability Rating :

-

Body Color :

Silver, Black

Number of Positions/Contacts :

-

Operating Temperature :

-20-85 °F

Withstanding Voltage :

500 VAC

Gender :

Male

Package :

Bulk

Body Material :

-

Internal Switch(s) :

-

Current Rating (Amps) :

5 A

Actual Diameter :

0.083 (2.10mm ID), 0.217 (5.50mm OD)

Voltage - Rated :

30VDC

Features :

Mounting Hardware, Thread Lock

Ingress Protection :

-

Shielding :

-

Mounting Feature :

Bulkhead - Front Side Nut

Series :

-

Manufacturer :

NTE Electronics

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Housing Material :

Metal

Contact Material :

-

Termination :

Solder Terminals

Mounting Type :

Panel Mount, Through Hole

Industry Recognized Mating Diameter :

2.10mm ID (0.083), 5.50mm OD (0.217)

Insulation Color :

-

Mounting :

Panel Mount

Mating Length/Depth :

-

Contact Material - Plating :

-

Product Status :

Active

Current Rating :

5 A

RoHS :

Non-Compliant

Voltage Rating :

30 VDC

Connector Type :

JACK

Thread Size :

-
