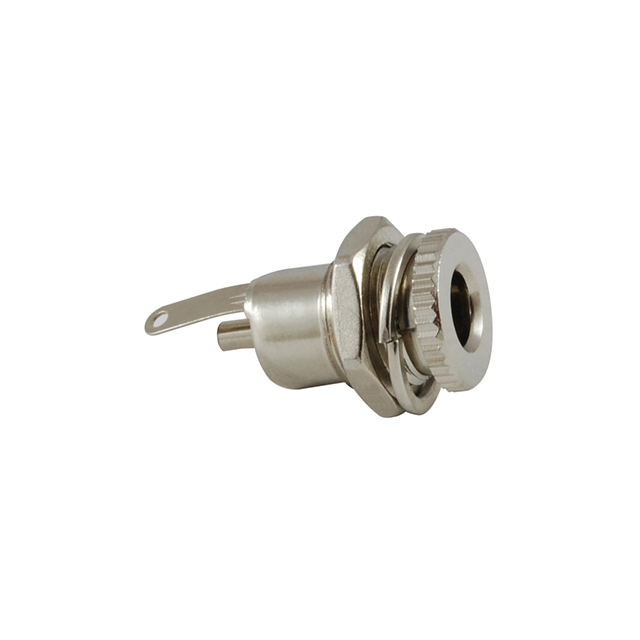

57-PJ20

Manufacturer :

NTE Electronics, Inc.

Product Category :

Power Connectors

Housing Material :

Metal

Body Color :

Silver, Black

Connector Type :

JACK

Includes :

3 pcs - 1 Connector, 1 Nut, 1 Washer

Package :

Bulk

Body Material :

-

Withstanding Voltage :

500 VAC

Mating Length/Depth :

-

Manufacturer :

NTE Electronics

Gender :

Male

Mounting :

Panel Mount

Thread Size :

-

Current Rating (Amps) :

5 A

Number of Positions/Contacts :

-

Current Rating :

5 A

Internal Switch(s) :

-

Contact Material - Plating :

-

Features :

Mounting Hardware, Thread Lock

Industry Recognized Mating Diameter :

2.50mm ID (0.098), 5.50mm OD (0.217)

Operating Temperature :

-20-85 °F

Shielding :

-

Series :

-

Actual Diameter :

0.098 (2.50mm ID), 0.217 (5.50mm OD)

Mounting Feature :

Bulkhead - Front Side Nut

Contact Material :

-

Voltage Rating :

30 VDC

Insulation Color :

-

RoHS :

Non-Compliant

Material Flammability Rating :

-

Voltage - Rated :

30VDC

Product Status :

Active

Ingress Protection :

-

Termination :

Solder Terminals

Mounting Type :

Panel Mount, Through Hole
