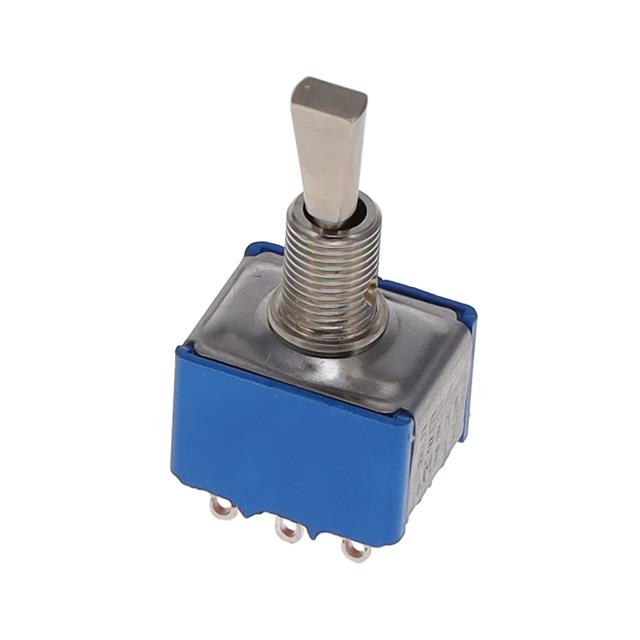

5656AB9

Manufacturer :

APEM Inc.

Product Category :

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Packaging :

Bulk

Circuit :

3PDT

Illumination :

Non-Illuminated

Mount :

Panel

Switch Type :

TOGGLE SWITCH

Orientation :

Straight

Pbfree Code :

yes

Actuator Material :

Polyamide (PA), Nylon

Voltage - Rated AC :

125V

Sealing :

EPOXY TERMINAL SEALED

Body Length or Diameter :

16.5mm

Body Breadth :

13.2 mm

Termination :

Solder

Current Rating :

4A

Voltage - Rated DC :

30V

Feature :

Epoxy Sealed Terminals

HTS Code :

8536.50.90.65

Bushing Thread :

1/4-40

Electrical Life :

40,000 Cycles

ECCN Code :

EAR99

Max Voltage Rating (DC) :

30V

Series :

5000

Actuator Type :

Flatted

Contact Current(DC)-Max :

4A

Housing Material :

Stainless Steel

Body Height :

13.1mm

Contact Material :

Silver

Mechanical Life :

100000 cycles

Contact Current(AC)-Max :

6A

Switch Function :

On-On

RoHS Status :

ROHS3 Compliant

Current Rating (Amps) :

6A AC 4A DC

JESD-609 Code :

e4

Actuator Length :

11.40mm

Termination Style :

Solder Lug

Contact (AC) Max Rating R Load :

6A@125VAC

Mounting Type :

Panel Mount

Contact (DC) Max Rating R Load :

4A@30VDC

Operating Temperature :

-40°C~85°C

Contact Resistance :

10MOhm

Panel Cutout Dimensions :

Circular - 6.50mm Dia

Factory Lead Time :

9 Weeks

Max Voltage Rating (AC) :

250V
