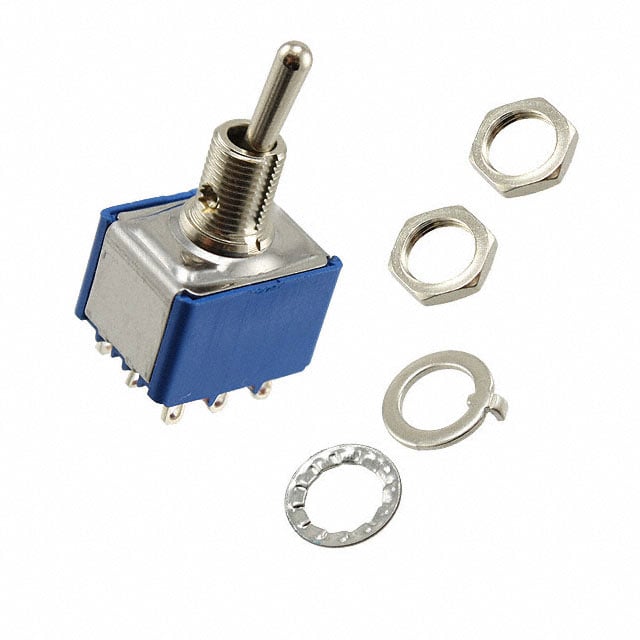

5656AB

Manufacturer :

APEM Inc.

Product Category :

Max Voltage Rating (AC) :

250V

Actuator Finish :

Chrome

Contact Resistance :

10MOhm

Voltage - Rated DC :

30V

Current Rating :

4A

Max Voltage Rating (DC) :

30V

Mount :

Panel

Contact Material :

Silver

Current Rating (Amps) :

6A AC 4A DC

Bushing Length :

0.314 inch

Circuit :

3PDT

Sealing :

EPOXY TERMINAL SEALED

Electrical Life :

40,000 Cycles

Pbfree Code :

yes

ECCN Code :

EAR99

Contact (DC) Max Rating R Load :

4A@30VDC

Dielectric Withstanding Voltage :

1500VRMS V

Mechanical Life :

100000 cycles

HTS Code :

8536.50.90.65

Bushing Thread :

1/4-40

Switch Type :

TOGGLE SWITCH

Actuator Material :

Brass, Nickel Plated

Panel Cutout Dimensions :

Circular - 6.50mm Dia

Mounting Type :

Panel Mount

Housing Material :

Stainless Steel

Contact Current(AC)-Max :

6A

Actuator Length :

10.50mm

Illumination Type :

Illuminated, Non-Illuminated

Body Height :

13.1mm

Operating Temperature :

-40°C~85°C

Termination :

Solder

Contact (AC) Max Rating R Load :

6A@125VAC

Feature :

Epoxy Sealed Terminals

Illumination :

Non-Illuminated

Switch Function :

On-On

Insulation Resistance :

1000000000Ohm

Body Length or Diameter :

16.5mm

Packaging :

Tray

RoHS Status :

ROHS3 Compliant

Body Breadth :

13.2 mm

Series :

5000

JESD-609 Code :

e4

Orientation :

Straight

Factory Lead Time :

5 Weeks

Actuator Type :

Standard Round

Contact Current(DC)-Max :

4A

Voltage - Rated AC :

125V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length - Termination :

0.145 inch

Termination Style :

Solder Lug
