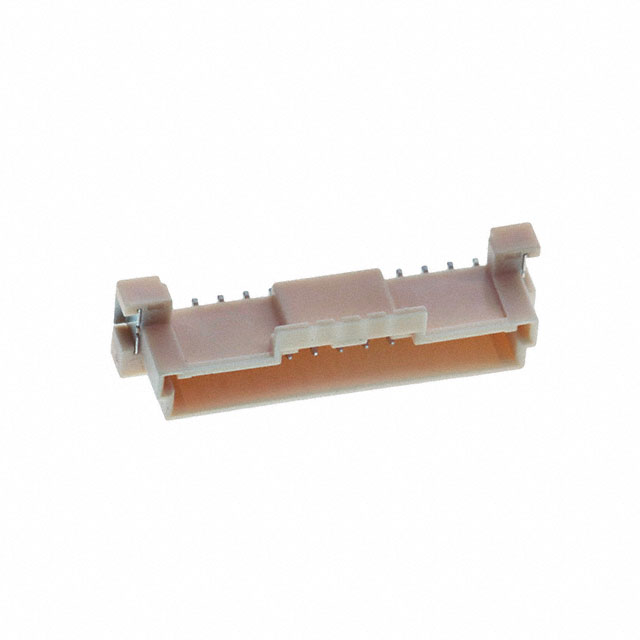

5600201320
Or copy the link below:
- Mfr.Part #
- 5600201320
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 13POS 2MM
- Stock
- 1,286
- In Stock ：
- 1,286
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Style :
- Board to Cable/Wire
- Number of Positions :
- 13
- Packaging :
- Tape and Reel (TR)
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pbfree Code :
- yes
- Series :
- DuraClik 560020
- Fastening Type :
- Latch Lock
- Published :
- 2015
- Insulation Color :
- Natural
- Shrouding :
- Shrouded - 4 Wall
- Contact Type :
- Male Pin
- Insulation Material :
- Polyamide (PA), Nylon
- RoHS Status :
- ROHS3 Compliant
- Applications :
- Automotive, Industrial
- Mounting Type :
- Surface Mount
- Contact Material :
- COPPER ALLOY
- Feature :
- Solder Retention
- Insulation Height :
- 0.236 6.00mm
- Contact Finish - Mating :
- Tin
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Contact Shape :
- Square
- Pitch - Mating :
- 0.079 2.00mm
- Connector Type :
- Header
- Factory Lead Time :
- 13 Weeks
- Number of Rows :
- 1
- Stack Height (Mating) :
- 9.3mm
- Datasheets
- 5600201320
DuraClik 560020 Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon 13-Position Board to Cable/Wire 0.236 6.00mm Height
5600201320 Overview
The product comes in a package of Header.Surface Mount is the type of mounting for the device.To package the product, a Tape & Reel (TR) case is used.The product is a member of the DuraClik 560020 Series.The device may be used for the following applications: Automotive, Industrial.It is more powerful in many ways due to its Solder Retention feature.
5600201320 Features
DuraClik 560020 series
5600201320 Applications
There are a lot of Molex
5600201320 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
