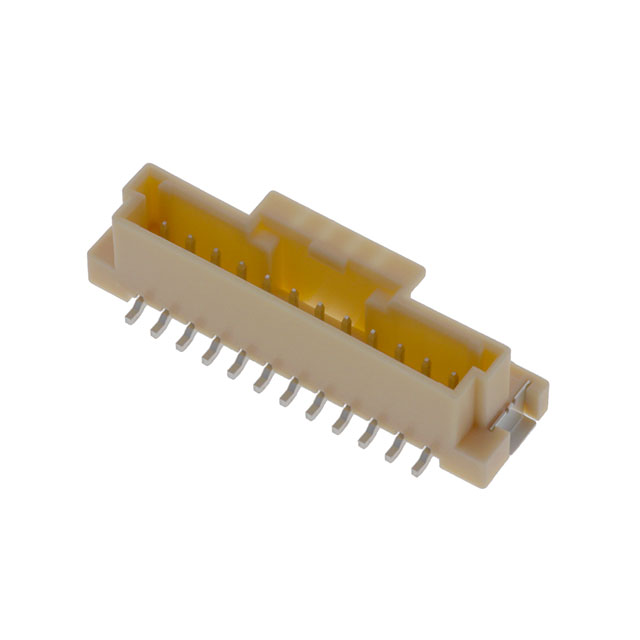

5600201220
Or copy the link below:
- Mfr.Part #
- 5600201220
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 12POS 2MM
- Stock
- 32,760
- In Stock ：
- 32,760
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Finish - Mating :
- Tin
- Contact Shape :
- Square
- Packaging :
- Tape and Reel (TR)
- Applications :
- Automotive, Industrial
- Connector Type :
- Header
- Number of Positions Loaded :
- All
- RoHS Status :
- ROHS3 Compliant
- Fastening Type :
- Latch Lock
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Surface Mount
- Insulation Height :
- 0.236 6.00mm
- Stack Height (Mating) :
- 9.3mm
- Published :
- 2015
- Feature :
- Solder Retention
- Pbfree Code :
- yes
- Contact Material :
- COPPER ALLOY
- Shrouding :
- Shrouded - 4 Wall
- Insulation Material :
- Polyamide (PA), Nylon
- Factory Lead Time :
- 11 Weeks
- Contact Type :
- Male Pin
- Number of Positions :
- 12
- Series :
- DuraClik 560020
- Number of Rows :
- 1
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.079 2.00mm
- Insulation Color :
- Natural
- Style :
- Board to Cable/Wire
- Datasheets
- 5600201220
DuraClik 560020 Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon 12-Position Board to Cable/Wire 0.236 6.00mm Height
5600201220 Overview
Packaging is in the form of Header.This device has a Surface Mount mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the DuraClik 560020 Series.There are a variety of possible applications for this device, including Automotive, Industrial.Several benefits come from the Solder Retention feature.
5600201220 Features
DuraClik 560020 series
5600201220 Applications
There are a lot of Molex
5600201220 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
