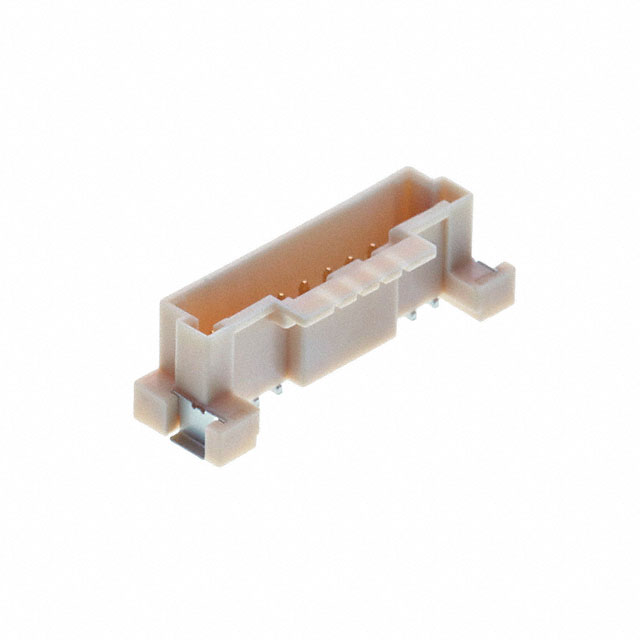

5600201030
Or copy the link below:
- Mfr.Part #
- 5600201030
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 10POS 2MM
- Stock
- 25,154
- In Stock ：
- 25,154
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Shrouding :
- Shrouded - 4 Wall
- Applications :
- Automotive, Industrial
- Contact Type :
- Male Pin
- Insulation Height :
- 0.236 6.00mm
- Fastening Type :
- Latch Lock
- Contact Finish - Mating :
- Gold
- Termination :
- Solder
- Contact Material :
- COPPER ALLOY
- Insulation Material :
- Polyamide (PA), Nylon
- Factory Lead Time :
- 12 Weeks
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Solder Retention
- Mounting Type :
- Surface Mount
- Series :
- DuraClik 560020
- Number of Rows :
- 1
- Insulation Color :
- Natural
- Contact Shape :
- Square
- Pitch - Mating :
- 0.079 2.00mm
- Style :
- Board to Cable/Wire
- Connector Type :
- Header
- ECCN Code :
- EAR99
- Stack Height (Mating) :
- 9.3mm
- Number of Positions :
- 10
- Packaging :
- Tape and Reel (TR)
- RoHS Status :
- ROHS3 Compliant
- Published :
- 2015
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 5600201030
DuraClik 560020 Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Gold Polyamide (PA), Nylon 10-Position Board to Cable/Wire 0.236 6.00mm Height
5600201030 Overview
Packaging is Header.Surface Mount is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the DuraClik 560020 Series, it can be found in this category.A possible application of the device would be Automotive, Industrial.With its Solder Retention feature, it is more powerful in many ways.
5600201030 Features
DuraClik 560020 series
5600201030 Applications
There are a lot of Molex
5600201030 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
