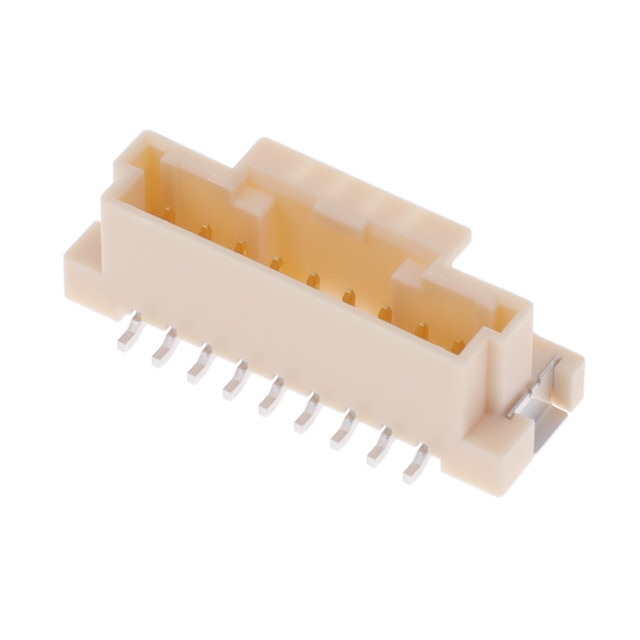

5600200930
Or copy the link below:
- Mfr.Part #
- 5600200930
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 9POS 2MM
- Stock
- 5,850
- In Stock ：
- 5,850
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Material Flammability Rating :
- UL94 V-0
- Applications :
- Automotive, Industrial
- Number of Positions Loaded :
- All
- Connector Type :
- Header
- Factory Lead Time :
- 11 Weeks
- Insulation Material :
- Polyamide (PA), Nylon
- Packaging :
- Tape and Reel (TR)
- Series :
- DuraClik 560020
- Stack Height (Mating) :
- 9.3mm
- Insulation Height :
- 0.236 6.00mm
- Mounting Type :
- Surface Mount
- Contact Type :
- Male Pin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- Natural
- Fastening Type :
- Latch Lock
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 9
- Contact Shape :
- Square
- Contact Material :
- COPPER ALLOY
- Contact Finish - Mating :
- Gold
- Number of Rows :
- 1
- Feature :
- Solder Retention
- Shrouding :
- Shrouded - 4 Wall
- Pitch - Mating :
- 0.079 2.00mm
- Pbfree Code :
- yes
- Published :
- 2015
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- Datasheets
- 5600200930
DuraClik 560020 Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Gold Polyamide (PA), Nylon 9-Position Board to Cable/Wire 0.236 6.00mm Height
5600200930 Overview
Packaging is Header.Surface Mount is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.As a product of the DuraClik 560020 Series, it can be found in this category.A possible application of the device would be Automotive, Industrial.With its Solder Retention feature, it is more powerful in many ways.
5600200930 Features
DuraClik 560020 series
5600200930 Applications
There are a lot of Molex
5600200930 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
