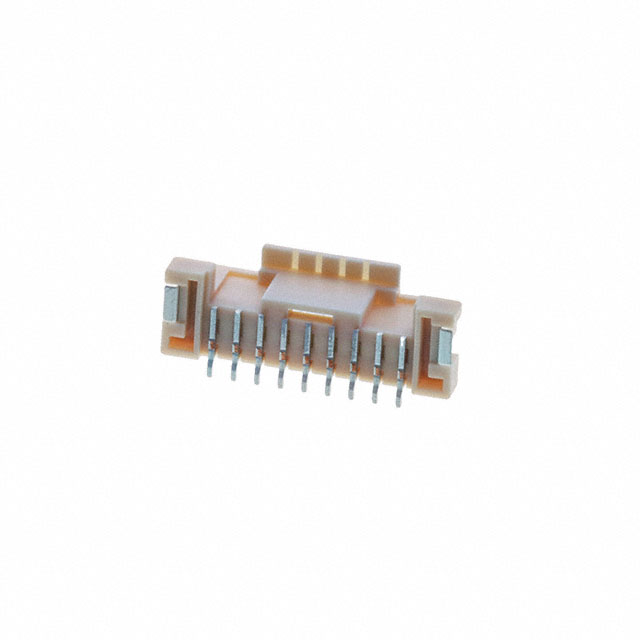

5600200920
Or copy the link below:
- Mfr.Part #
- 5600200920
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 9POS 2MM
- Stock
- 3,139
- In Stock ：
- 3,139
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Contact Type :
- Male Pin
- Contact Material :
- COPPER ALLOY
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Pitch - Mating :
- 0.079 2.00mm
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Factory Lead Time :
- 12 Weeks
- Number of Positions Loaded :
- All
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Shape :
- Square
- Applications :
- Automotive, Industrial
- Contact Finish - Mating :
- Tin
- Fastening Type :
- Latch Lock
- Mounting Type :
- Surface Mount
- Series :
- DuraClik 560020
- Number of Positions :
- 9
- Packaging :
- Tape and Reel (TR)
- Feature :
- Solder Retention
- Stack Height (Mating) :
- 9.3mm
- Insulation Color :
- Natural
- Number of Rows :
- 1
- Published :
- 2015
- Shrouding :
- Shrouded - 4 Wall
- Insulation Height :
- 0.236 6.00mm
- Datasheets
- 5600200920
DuraClik 560020 Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon 9-Position Board to Cable/Wire 0.236 6.00mm Height
5600200920 Overview
Currently, it is packaged in Header.The mounting type of the device is Surface Mount.A Tape & Reel (TR) case is used to package the product.A product of the DuraClik 560020 Series, it belongs to the range of products of that series.This device may be used for the purpose of Automotive, Industrial.A number of features make the Solder Retention feature more powerful.
5600200920 Features
DuraClik 560020 series
5600200920 Applications
There are a lot of Molex
5600200920 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
