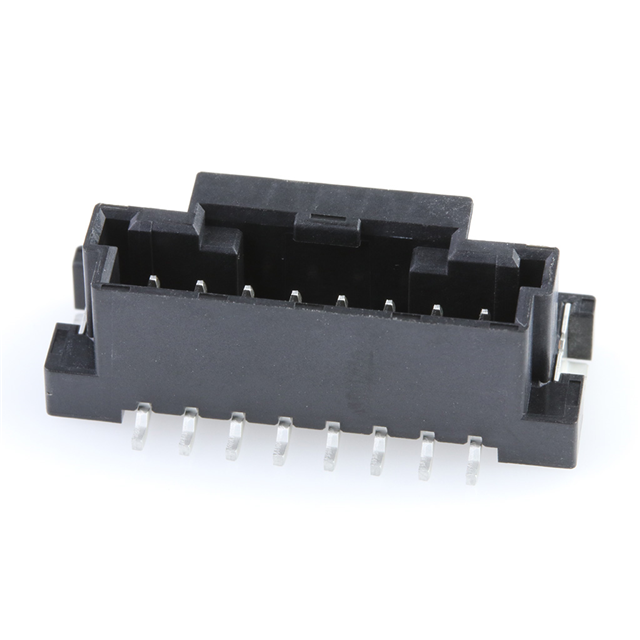

5600200821
Or copy the link below:
- Mfr.Part #
- 5600200821
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 2.0 W/B SMT ST 8CKT EMBOSSED TP
- Stock
- 1,967
- In Stock ：
- 1,967
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Overall Contact Length :
- -
- Termination Method :
- Solder
- Operating Temperature :
- -40 to 125 °C
- Contact Material :
- COPPER ALLOY
- Type :
- SHROUDED
- Pitch - Mating :
- 0.079 (2.00mm)
- Mounting Type :
- Surface Mount
- Connector Type :
- Header
- Orientation :
- Vertical
- Contact Shape :
- Square
- Product Status :
- Active
- Number of Positions Loaded :
- All
- Body Orientation :
- Straight
- Contact Finish Thickness - Post :
- -
- Shrouding :
- Shrouded - 4 Wall
- Insulation Color :
- Black
- Contact Finish - Mating :
- Tin
- Number of Positions :
- 8 Position
- Contact Finish - Post :
- Tin
- Packaging :
- Cut Tape
- Pitch :
- 2 mm
- Product Length :
- 22.6 mm
- Termination :
- Solder
- Application :
- Signal
- Current Rating (Amps) :
- Varies by Wire Gauge
- Base Product Number :
- 560020
- Insulation Material :
- Polyamide (PA), Nylon
- Reach Compliance Code :
- Compliant
- Style :
- Board to Cable/Wire
- Applications :
- Automotive, Industrial
- Mounting :
- Surface Mount
- RoHS :
- Details
- Fastening Type :
- Latch Lock
- Mated Stacking Heights :
- -
- Row Spacing - Mating :
- -
- Voltage Rating :
- 125 VAC/DC
- Current Rating :
- 3 A
- Features :
- Solder Retention
- Number of Rows :
- 1 Row
- Gender :
- Header
- Series :
- 560020
- Base/Housing Material :
- Polyamide 9T
- Contact Finish Thickness - Mating :
- -
- Contact Plating :
- Tin
- Contact Type :
- Male Pin
- Material Flammability Rating :
- UL94 V-0
- Mounting Angle :
- Straight
- Number of Contacts :
- 8
- Housing Color :
- Black
- Contact Length - Post :
- -
- Contact Length - Mating :
- -
- Tradename :
- DuraClik
- Insulation Height :
- 0.315 (8.00mm)
- Ingress Protection :
- -
- Datasheets
- 5600200821
5600200821 Documents
1 Row Rows Header Cut Tape 8 Position Positions Surface Mount Male Pin 560020
560020-0821 Overview
Packaging for this item is Header.There is a mounting type of Surface Mount for this device.It is necessary to use a Cut Tape case for packaging the product.This product is part of the 560020 Series.
