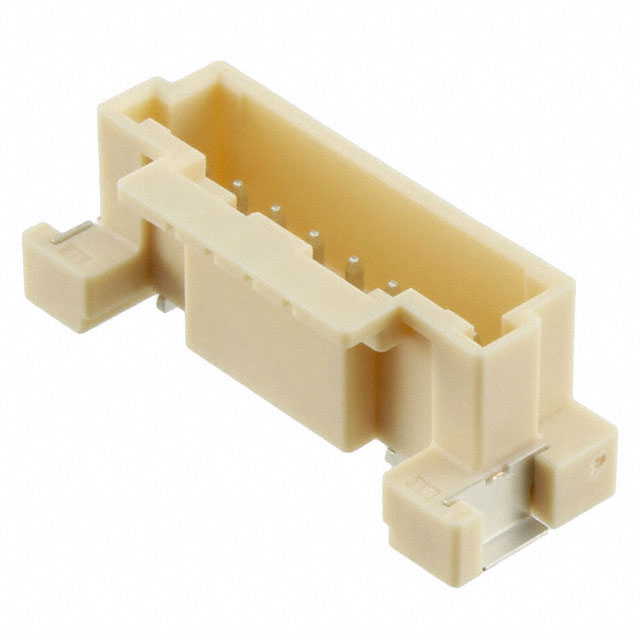

5600200800

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Feature :

Solder Retention

Contact Gender :

Male

JESD-609 Code :

e3

REACH SVHC :

Unknown

Number of Contacts :

8

Glow Wire Compliant :

Non-Compliant

Reference Standard :

UL

Contact Length - Mating :

0.136 3.45mm

Pitch - Mating :

0.079 2.00mm

Number of Rows :

1

Durability :

30 Cycles

Mounting Type :

Surface Mount

Insulation Height :

0.315 8.00mm

Number of Positions Loaded :

All

Polarization Key :

POLARIZED HOUSING

Shrouding :

Shrouded - 4 Wall

Radiation Hardening :

No

Number Of PCB Rows :

1

Insulation Resistance :

1GOhm

Voltage - Rated :

125V

Stack Height (Mating) :

9.3mm

Fastening Type :

Latch Lock

Orientation :

Vertical

Length :

22.6mm

Dielectric Withstanding Voltage :

700VAC V

Housing Material :

PBT

Number of Conductors :

ONE

Published :

2011

Contact Shape :

Square

Packaging :

Tape and Reel (TR)

Contact Finish - Mating :

Tin

Pbfree Code :

yes

Housing Color :

Natural

Terminal Pitch :

2.0066mm

PCB Contact Pattern :

RECTANGULAR

Connector Type :

Header

Body Breadth :

0.307 inch

Rated Current (Signal) :

3A

Series :

DuraClik 560020

Min Operating Temperature :

-40°C

Current Rating :

3A

Termination :

Solder

Max Operating Temperature :

105°C

RoHS Status :

ROHS3 Compliant

Contact Material :

COPPER ALLOY

Applications :

Automotive, Industrial

Mating Contact Pitch :

0.079 inch

Mount :

Surface Mount

Contact Type :

Male Pin

Insulation Material :

Polyamide (PA), Nylon

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Style :

Board to Cable/Wire

Depth :

9.15mm

Reliability :

COMMERCIAL
