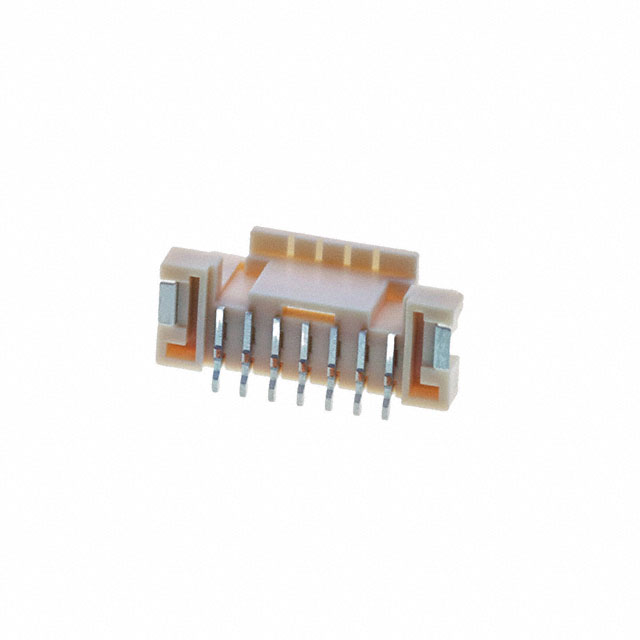

5600200730

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Type :

Male Pin

Applications :

Automotive, Industrial

JESD-609 Code :

e3

Contact Shape :

Square

Packaging :

Tape and Reel (TR)

Number of Rows :

1

Connector Type :

Header

Operating Temperature (Min) :

-40°C

Termination :

Solder

Rated Current (Signal) :

3A

Stack Height (Mating) :

9.3mm

Insulation Color :

Natural

Reference Standard :

UL

Terminal Pitch :

2.0066mm

Style :

Board to Cable/Wire

Mounting Type :

Surface Mount

Shrouding :

Shrouded - 4 Wall

Material Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Insulation Material :

Polyamide (PA), Nylon

Polarization Key :

POLARIZED HOUSING

PCB Contact Pattern :

RECTANGULAR

Mounting Option 1 :

LOCKING

Number of Positions :

7

Number Of PCB Rows :

1

Contact Finish - Mating :

Gold

Fastening Type :

Latch Lock

Insulation Height :

0.236 6.00mm

Reliability :

COMMERCIAL

Factory Lead Time :

11 Weeks

Pbfree Code :

yes

Pitch - Mating :

0.079 2.00mm

Number of Conductors :

ONE

Feature :

Solder Retention

Board Mounting Option :

FITTING NAIL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

COPPER ALLOY

Total Number of Contacts :

7

Published :

2015

Durability :

30 Cycles

RoHS Status :

ROHS3 Compliant

Series :

DuraClik 560020
