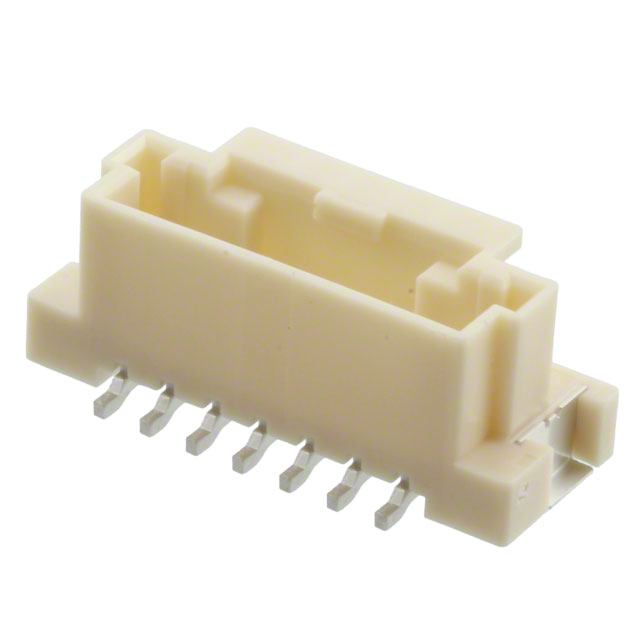

5600200720

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Durability :

30 Cycles

Number of Positions Loaded :

All

Contact Material :

COPPER ALLOY

Rated Current (Signal) :

3A

Stack Height (Mating) :

9.3mm

Contact Finish - Mating :

Tin

Insulation Material :

Polyamide (PA), Nylon

Number of Conductors :

ONE

Polarization Key :

POLARIZED HOUSING

JESD-609 Code :

e3

Max Operating Temperature :

125°C

Fastening Type :

Latch Lock

HTS Code :

8536.69.40.40

Orientation :

Vertical

Terminal Pitch :

2.0066mm

Insulation Height :

0.315 8.00mm

Termination :

Solder

Insulation Color :

Natural

PCB Contact Pattern :

RECTANGULAR

Contact Shape :

Square

Voltage - Rated :

125V

Factory Lead Time :

11 Weeks

Packaging :

Tape and Reel (TR)

ECCN Code :

EAR99

Feature :

Solder Retention

Style :

Board to Cable/Wire

Ambient Temperature Range High :

105°C

Connector Type :

Header

RoHS Status :

ROHS3 Compliant

Series :

DuraClik 560020

Gender :

Male

Mounting Type :

Surface Mount

REACH SVHC :

Unknown

Published :

2015

Applications :

Automotive, Industrial

Pitch - Mating :

0.079 2.00mm

Glow Wire Compliant :

Non-Compliant

Mount :

Surface Mount

Reference Standard :

UL

Current Rating :

3A

Shrouding :

Shrouded - 4 Wall

Height :

8.2mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Contacts :

7

Number of Rows :

1

Min Operating Temperature :

-40°C

Contact Type :

Male Pin

Number Of PCB Rows :

1

Reliability :

COMMERCIAL
