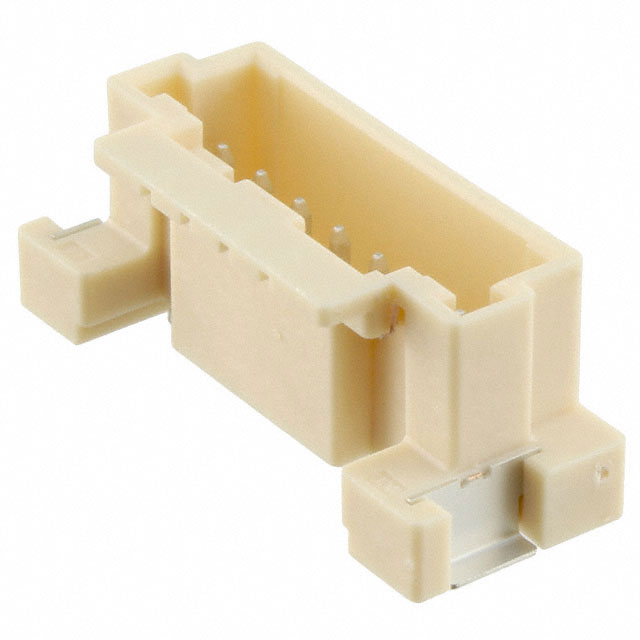

5600200700

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Total Number of Contacts :

7

Published :

2011

Number of Positions Loaded :

All

Operating Temperature (Min) :

-40°C

Insulation Material :

Polyamide (PA), Nylon

ECCN Code :

EAR99

Number of Conductors :

ONE

Pitch - Mating :

0.079 2.00mm

Termination :

Solder

Packaging :

Tape and Reel (TR)

Shrouding :

Shrouded - 4 Wall

Contact Shape :

Square

Connector Type :

Header

Contact Material :

COPPER ALLOY

Number of Positions :

7

Series :

DuraClik 560020

RoHS Status :

ROHS3 Compliant

Durability :

30 Cycles

Mounting Option 1 :

LOCKING

Insulation Color :

Natural

Pbfree Code :

yes

Number of Rows :

1

Applications :

Automotive, Industrial

Contact Type :

Male Pin

Style :

Board to Cable/Wire

HTS Code :

8536.69.40.40

Rated Current (Signal) :

3A

Stack Height (Mating) :

9.3mm

Mounting Type :

Surface Mount

Contact Finish - Mating :

Tin

PCB Contact Pattern :

RECTANGULAR

Polarization Key :

POLARIZED HOUSING

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Solder Retention

Terminal Pitch :

2.0066mm

Reference Standard :

UL

Insulation Height :

0.315 8.00mm

Number Of PCB Rows :

1

Fastening Type :

Latch Lock
