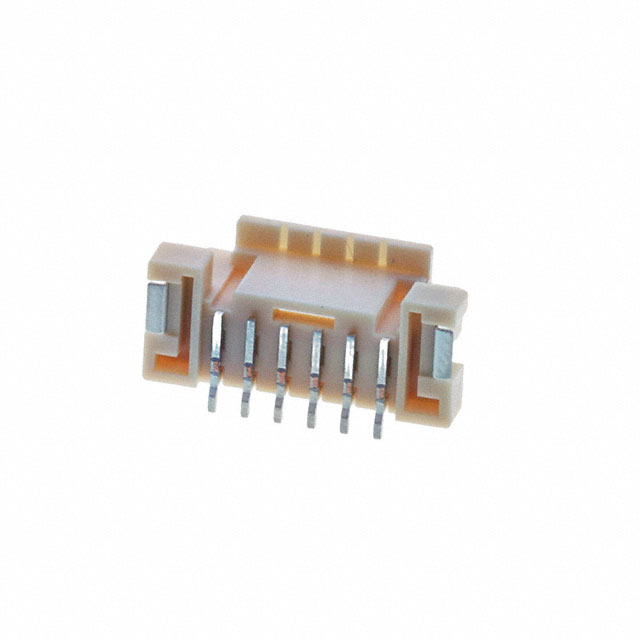

5600200630

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Total Number of Contacts :

6

Termination :

Solder

Rated Current (Signal) :

3A

Series :

DuraClik 560020

Insulation Height :

0.236 6.00mm

Mounting Option 1 :

LOCKING

Mating Contact Pitch :

0.079 inch

Applications :

Automotive, Industrial

Packaging :

Tape and Reel (TR)

Number of Positions :

6

Reliability :

COMMERCIAL

JESD-609 Code :

e3

Pitch - Mating :

0.079 2.00mm

Published :

2015

Reference Standard :

UL

Operating Temperature (Min) :

-40°C

Board Mounting Option :

FITTING NAIL

Contact Material :

COPPER ALLOY

Mounting Type :

Surface Mount

Number of Positions Loaded :

All

Polarization Key :

POLARIZED HOUSING

Insulation Color :

Natural

Connector Type :

Header

Feature :

Solder Retention

Contact Shape :

Square

Number of Rows :

1

Dielectric Withstanding Voltage :

700VAC V

Number of Conductors :

ONE

Shrouding :

Shrouded - 4 Wall

Material Flammability Rating :

UL94 V-0

Body Breadth :

0.307 inch

PCB Contact Pattern :

RECTANGULAR

Pbfree Code :

yes

Number Of PCB Rows :

1

Contact Finish - Mating :

Gold

Durability :

30 Cycles

Style :

Board to Cable/Wire

Factory Lead Time :

13 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Insulation Material :

Polyamide (PA), Nylon

Contact Type :

Male Pin

Stack Height (Mating) :

9.3mm

Body Length or Diameter :

0.732 inch

Fastening Type :

Latch Lock
