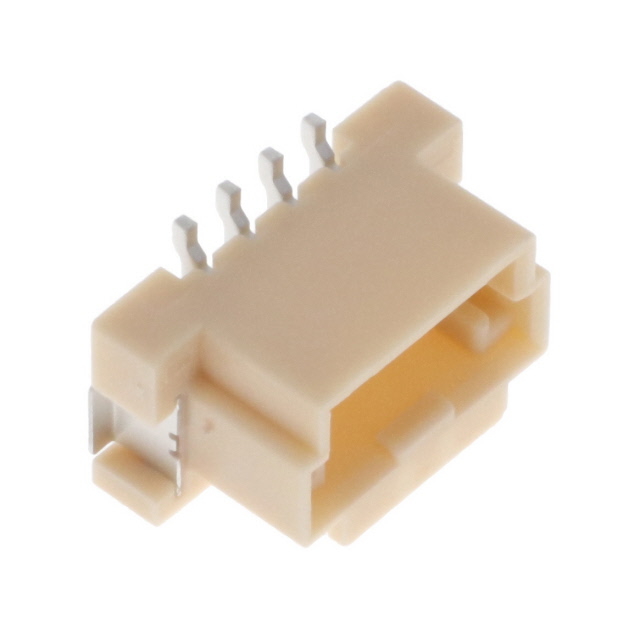

5600200430

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Durability :

30 Cycles

Rated Current (Signal) :

3A

Insulation Material :

Polyamide (PA), Nylon

Contact Type :

Male Pin

Factory Lead Time :

11 Weeks

Number of Rows :

1

Mating Contact Pitch :

0.079 inch

Applications :

Automotive, Industrial

Stack Height (Mating) :

9.3mm

Mounting Option 1 :

LOCKING

Board Mounting Option :

FITTING NAIL

RoHS Status :

ROHS3 Compliant

Contact Material :

COPPER ALLOY

Insulation Color :

Natural

Shrouding :

Shrouded - 4 Wall

Connector Type :

Header

JESD-609 Code :

e3

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Surface Mount

Feature :

Solder Retention

Reliability :

COMMERCIAL

Pbfree Code :

yes

PCB Contact Pattern :

RECTANGULAR

Body Length or Diameter :

0.575 inch

Packaging :

Tape and Reel (TR)

Body Breadth :

0.307 inch

Number Of PCB Rows :

1

Series :

DuraClik 560020

Material Flammability Rating :

UL94 V-0

Contact Shape :

Square

Termination :

Solder

Pitch - Mating :

0.079 2.00mm

Published :

2015

Number of Conductors :

ONE

Contact Finish - Mating :

Gold

Number of Positions :

4

Number of Positions Loaded :

All

Polarization Key :

POLARIZED HOUSING

Style :

Board to Cable/Wire

Insulation Height :

0.236 6.00mm

Fastening Type :

Latch Lock

Total Number of Contacts :

4

Terminal Pitch :

2.0066mm

Dielectric Withstanding Voltage :

700VAC V

Reference Standard :

UL
