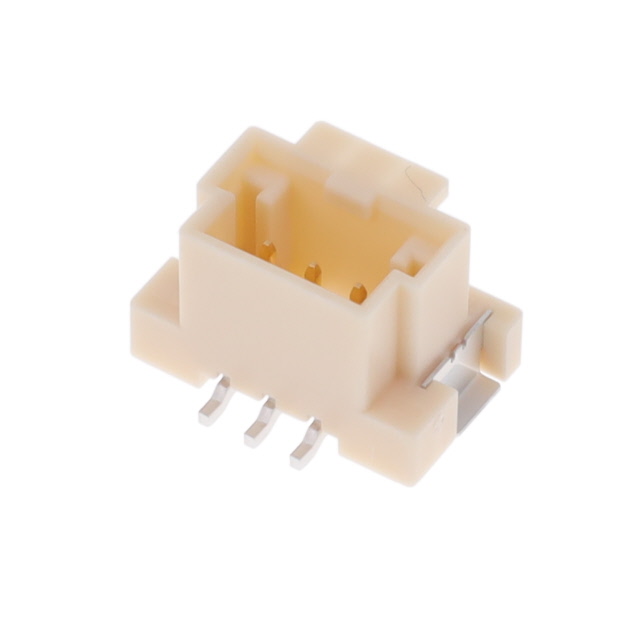

5600200330

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Polarization Key :

POLARIZED HOUSING

Reference Standard :

UL

Series :

DuraClik 560020

Packaging :

Tape and Reel (TR)

Dielectric Withstanding Voltage :

700VAC V

Mating Contact Pitch :

0.079 inch

Number of Rows :

1

Feature :

Solder Retention

Number of Positions :

3

Connector Type :

Header

Insulation Color :

Natural

PCB Contact Pattern :

RECTANGULAR

Body Length or Diameter :

0.496 inch

Insulation Material :

Polyamide (PA), Nylon

Style :

Board to Cable/Wire

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Conductors :

ONE

RoHS Status :

ROHS3 Compliant

Published :

2015

Pbfree Code :

yes

Fastening Type :

Latch Lock

Contact Finish - Mating :

Gold

Material Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

JESD-609 Code :

e3

Board Mounting Option :

FITTING NAIL

Mounting Type :

Surface Mount

Factory Lead Time :

11 Weeks

Contact Type :

Male Pin

Pitch - Mating :

0.079 2.00mm

Rated Current (Signal) :

3A

Total Number of Contacts :

3

Operating Temperature (Min) :

-40°C

Contact Shape :

Square

Mounting Option 1 :

LOCKING

Applications :

Automotive, Industrial

Insulation Height :

0.236 6.00mm

Terminal Pitch :

2.0066mm

Number Of PCB Rows :

1

Stack Height (Mating) :

9.3mm

Termination :

Solder

Reliability :

COMMERCIAL

Contact Material :

COPPER ALLOY

Number of Positions Loaded :

All
