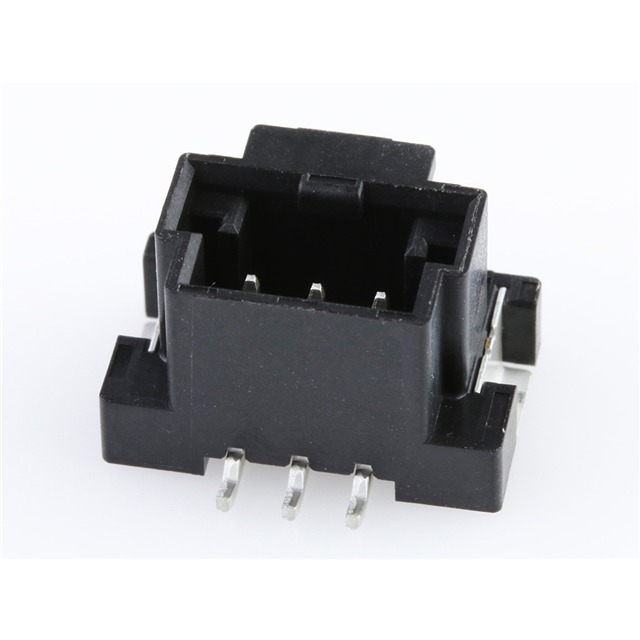

5600200321

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Product Status :

Active

Termination :

Solder

Product :

Headers

Shrouding :

Shrouded - 4 Wall

Fastening Type :

Latch Lock

Base Product Number :

560020

Mounting Style :

PCB Mount

Minimum Operating Temperature :

- 40 C

Mated Stacking Heights :

-

Contact Shape :

Square

Insulation Height :

0.315 (8.00mm)

Contact Material :

COPPER ALLOY

Applications :

Automotive, Industrial

Insulation Color :

Black

Current Rating :

3 A

Contact Finish Thickness - Mating :

-

Orientation :

Vertical

Contact Finish Thickness - Post :

-

Mounting Angle :

Straight

Reach Compliance Code :

Unknown

Contact Length - Mating :

-

Series :

560020

Contact Finish - Post :

Tin

Features :

Solder Retention

Contact Finish - Mating :

Tin

Material Flammability Rating :

UL94 V-0

Contact Length - Post :

-

Pitch - Mating :

0.079 (2.00mm)

Housing Material :

Polyamide (PA)

Number of Rows :

1 Row

Contact Plating :

Tin

Voltage Rating :

125 VAC/DC

Style :

Board to Cable/Wire

Contact Type :

Male Pin

Row Spacing - Mating :

-

Mounting Type :

Surface Mount

Insulation Material :

Polyamide (PA), Nylon

Termination Style :

Solder

RoHS :

Details

Packaging :

Cut Tape

Connector Type :

Header

Operating Temperature :

-40°C ~ 105°C

Pitch :

2 mm

Number of Positions :

3 Position

Number of Positions Loaded :

All

Maximum Operating Temperature :

+ 125 C

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Tradename :

DuraClik

Application :

Signal

Ingress Protection :

-

Current Rating (Amps) :

Varies by Wire Gauge

Overall Contact Length :

-
