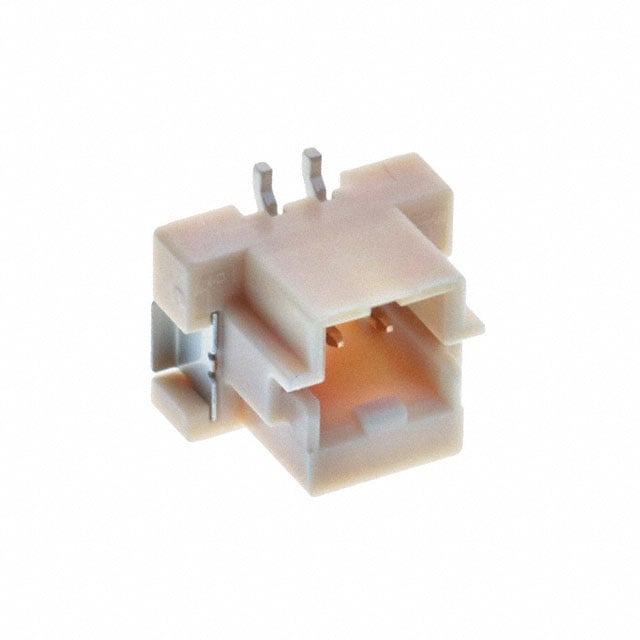

5600200230

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Published :

2015

Contact Type :

Male Pin

Total Number of Contacts :

2

Reliability :

COMMERCIAL

Series :

DuraClik 560020

Pbfree Code :

yes

Rated Current (Signal) :

3A

Stack Height (Mating) :

9.3mm

Durability :

30 Cycles

Contact Finish - Mating :

Gold

RoHS Status :

ROHS3 Compliant

Material Flammability Rating :

UL94 V-0

Mounting Option 1 :

LOCKING

Dielectric Withstanding Voltage :

700VAC V

Packaging :

Tape and Reel (TR)

Termination :

Solder

Number of Positions Loaded :

All

Number of Conductors :

ONE

JESD-609 Code :

e3

Pitch - Mating :

0.079 2.00mm

Body Breadth :

0.307 inch

Number of Rows :

1

Polarization Key :

POLARIZED HOUSING

Contact Material :

COPPER ALLOY

Reference Standard :

UL

Applications :

Automotive, Industrial

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Color :

Natural

Feature :

Solder Retention

Board Mounting Option :

FITTING NAIL

Number of Positions :

2

Number Of PCB Rows :

1

Mounting Type :

Surface Mount

Mating Contact Pitch :

0.079 inch

Factory Lead Time :

11 Weeks

Contact Shape :

Square

Style :

Board to Cable/Wire

Connector Type :

Header

Insulation Material :

Polyamide (PA), Nylon

Shrouding :

Shrouded - 4 Wall

Fastening Type :

Latch Lock

PCB Contact Pattern :

RECTANGULAR

Operating Temperature (Min) :

-40°C

Insulation Height :

0.236 6.00mm
