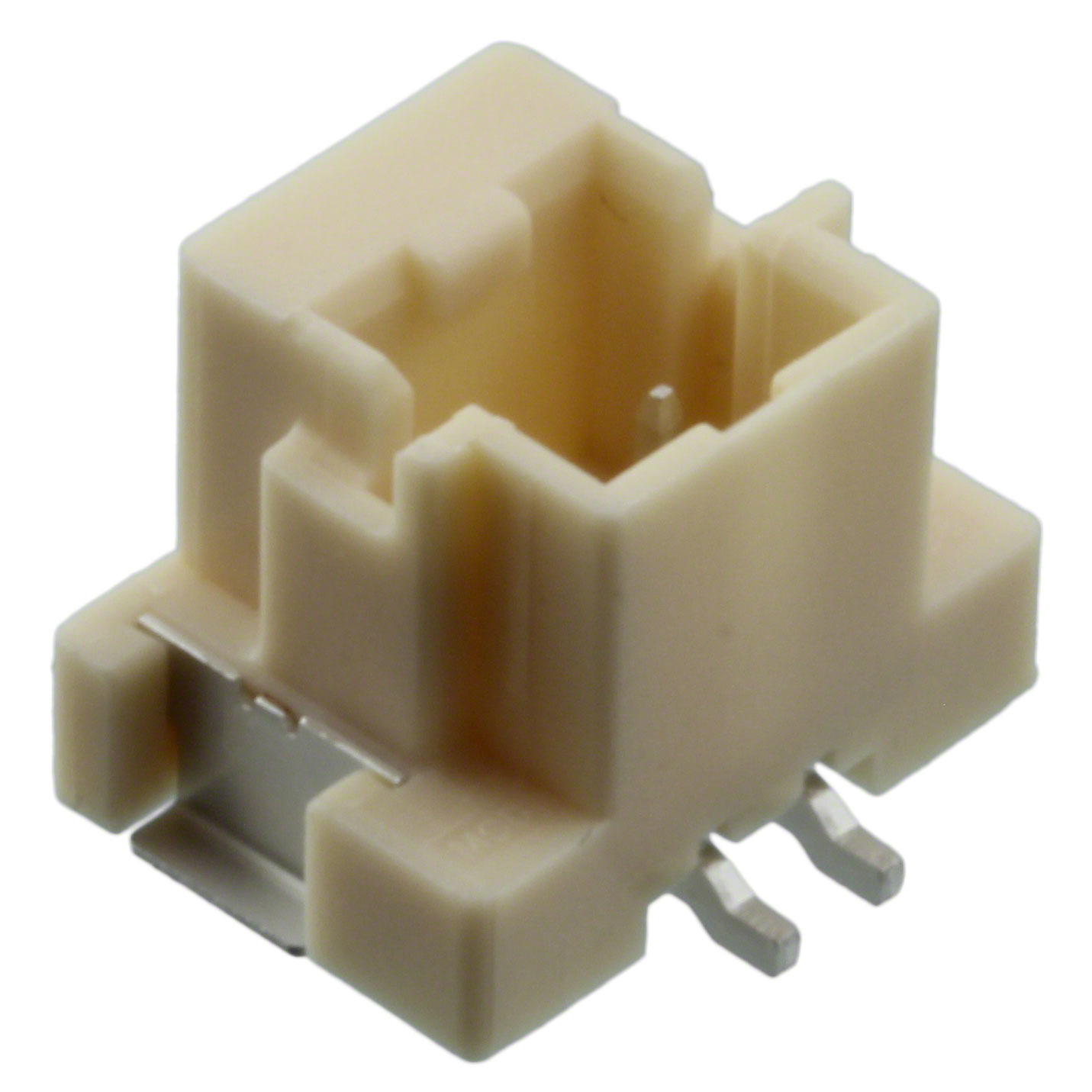

5600200220

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Reliability :

COMMERCIAL

Insulation Color :

Natural

Contact Shape :

Square

Mounting Type :

Surface Mount

Height :

8.2mm

HTS Code :

8536.69.40.40

Number of Positions Loaded :

All

Number of Conductors :

ONE

Body Breadth :

0.307 inch

Series :

DuraClik 560020

ECCN Code :

EAR99

Polarization Key :

POLARIZED HOUSING

Shrouding :

Shrouded - 4 Wall

Reference Standard :

UL

Insulation Height :

0.315 8.00mm

Termination :

Solder

Factory Lead Time :

12 Weeks

Insulation Material :

Polyamide (PA), Nylon

Number of Contacts :

2

Orientation :

Vertical

Min Operating Temperature :

-40°C

Packaging :

Tape and Reel (TR)

Voltage - Rated :

125V

Connector Type :

Header

Durability :

30 Cycles

REACH SVHC :

Unknown

Published :

2015

Contact Material :

COPPER ALLOY

Dielectric Withstanding Voltage :

700VAC V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Applications :

Automotive, Industrial

Style :

Board to Cable/Wire

Fastening Type :

Latch Lock

Current Rating :

3A

Mount :

Surface Mount

Rated Current (Signal) :

3A

Glow Wire Compliant :

Non-Compliant

Mating Contact Pitch :

0.079 inch

Contact Type :

Male Pin

Pitch - Mating :

0.079 2.00mm

Gender :

Male

Stack Height (Mating) :

9.3mm

Number Of PCB Rows :

1

Number of Rows :

1

PCB Contact Pattern :

RECTANGULAR

RoHS Status :

ROHS3 Compliant

JESD-609 Code :

e3

Feature :

Solder Retention

Contact Finish - Mating :

Tin

Max Operating Temperature :

125°C
