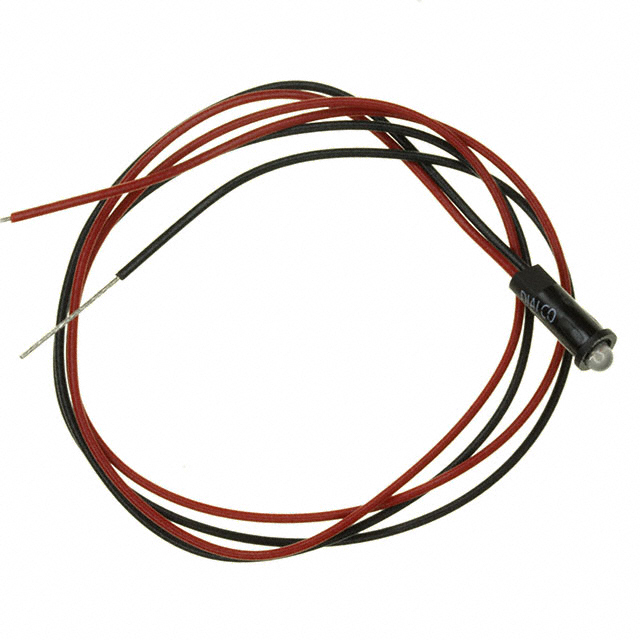

5583201007F

Manufacturer :

Dialight

Product Category :

Ratings :

Vf (Typ), If (Max)

Configuration :

COMMON BIPOLAR TERMINAL, 2 ELEMENTS

Color@Wavelength :

Green/yellow

Surface Mount :

No

Mounting Feature :

Panel Mount

Lens Size :

3mm T-1

Current :

30mA Green 20mA Yellow

Terminal Finish :

Copper/Nickel/Silver (Cu/Ni/Ag)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

T-code :

T-1

Additional Feature :

IC COMPATIBLE, HIGH RELIABILITY

Number of Terminations :

2

Viewing Angle :

80°

Type :

LED

Panel Cutout Dimensions :

0.16 (4.06mm)

Overall Height :

4.78mm

Operating Temperature (Max) :

100°C

Lens Style :

Round with Domed Top

Millicandela Rating :

12.3mcd Green, 5.8mcd Yellow

Panel Cutout Shape :

Round

Lamp Color :

Green, Yellow

HTS Code :

8541.40.20.00

Wavelength - Peak :

565nm Green 585nm Yellow

Operating Temperature (Min) :

-55°C

JESD-609 Code :

e4

Luminous Intensity :

4.3/6.8 mcd

Voltage :

2.1V Green 2.1V Yellow

Published :

2011

Terminal Pitch :

2.5mm

Number of Functions :

1

Pbfree Code :

yes

Series :

558

Factory Lead Time :

10 Weeks

Packing Method :

Bulk

RoHS Status :

ROHS3 Compliant

Termination Style :

Wire Leads - 14 (355.60mm)
