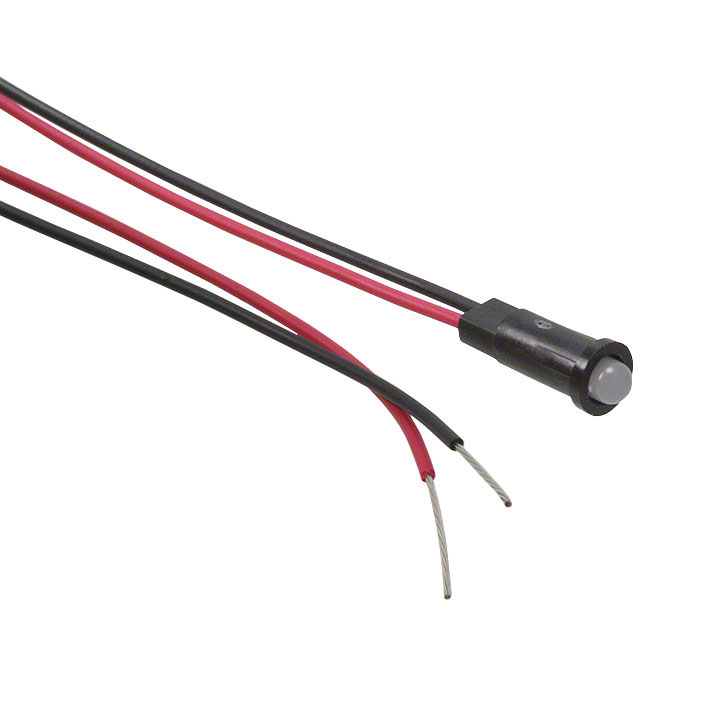

5583001003F
- Mfr.Part #
- 5583001003F
- Manufacturer
- Dialight
- Package / Case
- Datasheet
- Download
- Description
- LED PANEL IND RED/GRN SNAP-IN
- Stock
- 97
- In Stock :
- 97
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Dialight
- Product Category :
- Viewing Angle :
- 200°
- Factory Lead Time :
- 10 Weeks
- Lens Style :
- Round with Domed Top
- Terminal Pitch :
- 2.5mm
- Mounting Feature :
- Panel Mount
- Termination Style :
- Wire Leads - 6 (152.40mm)
- Published :
- 2015
- Overall Height :
- 4.78mm
- Type :
- LED
- JESD-609 Code :
- e4
- Color@Wavelength :
- Green/Red
- Packing Method :
- Bulk
- Operating Temperature (Max) :
- 100°C
- T-code :
- T-1
- Number of Functions :
- 1
- Current :
- 30mA Green 30mA Red
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Millicandela Rating :
- 8.7mcd Green, 5.6mcd Red
- Ratings :
- Vf (Typ), If (Max)
- Voltage :
- 2V Green 1.9V Red
- Lamp Color :
- Green, Red
- Series :
- 558
- Panel Cutout Shape :
- Round
- Luminous Intensity :
- 4.8 mcd
- Wavelength - Peak :
- 565nm Green 630nm Red
- Operating Temperature (Min) :
- -55°C
- Pbfree Code :
- yes
- Terminal Finish :
- Copper/Nickel/Silver (Cu/Ni/Ag)
- Lens Size :
- 3mm T-1
- Additional Feature :
- IC COMPATIBLE, HIGH RELIABILITY
- Configuration :
- COMMON BIPOLAR TERMINAL, 2 ELEMENTS
- HTS Code :
- 8541.40.20.00
- Surface Mount :
- No
- Panel Cutout Dimensions :
- 0.16 (4.06mm)
- Number of Terminations :
- 2
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- 5583001003F
5583001003F Documents

5583001003F datasheet pdf and Panel Indicators, Pilot Lights product details from Dialight stock available at
