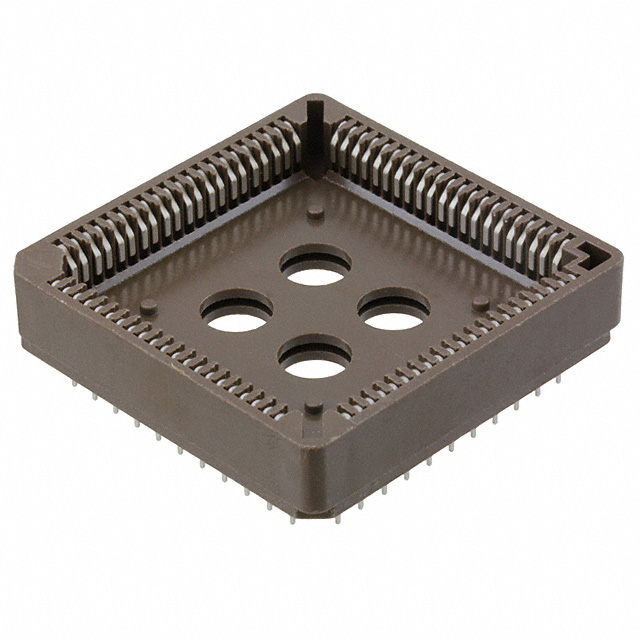

54020-84030LF
Or copy the link below:
- Mfr.Part #
- 54020-84030LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN SOCKET PLCC 84POS TIN
- Stock
- 19,095
- In Stock ：
- 19,095
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- IC Sockets
- Packaging :
- Tube
- Feature :
- Closed Frame
- Contact Material - Post :
- COPPER ALLOY
- ECCN Code :
- EAR99
- Reach Compliance Code :
- Compliant
- Termination :
- Solder
- Pbfree Code :
- yes
- Contact Material - Mating :
- COPPER ALLOY
- Mounting Type :
- Through Hole
- Housing Material :
- Polyphenylene Sulfide (PPS)
- Operating Temperature :
- -40°C~105°C
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Number of Contacts :
- 84
- JESD-609 Code :
- e3
- Contact Finish - Mating :
- Tin
- Insulation Resistance :
- 1000000000Ohm
- Dielectric Withstanding Voltage :
- 600VAC V
- Published :
- 2014
- Body Breadth :
- 1.417 inch
- Pitch - Mating :
- 0.050 1.27mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- HTS Code :
- 8536.69.40.40
- Type :
- PLCC
- Material Flammability Rating :
- UL94 V-0
- Contact Resistance :
- 20mOhm
- Number of Positions :
- 84
- Number of Positions or Pins (Grid) :
- 84 (4 x 21)
- Lead Pitch :
- 2.54mm
- Additional Feature :
- STANDARD: UL 94V-0
- Contact Configuration :
- 21X21
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Pitch - Post :
- 0.100 2.54mm
- Body Length or Diameter :
- 1.417 inch
- Contact Style :
- BELLOWED TYPE
- Termination Post Length :
- 0.126 3.20mm
- Current Rating (Amps) :
- 1A
- Body Depth :
- 0.321 inch
- RoHS Status :
- RoHS Compliant
- Datasheets
- 54020-84030LF
