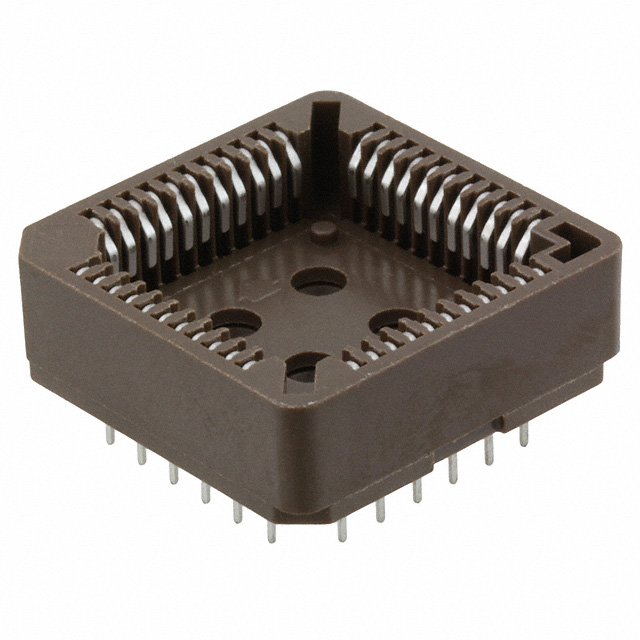

54020-44030LF
- Mfr.Part #
- 54020-44030LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- PLCC
- Datasheet
- Download
- Description
- CONN SOCKET PLCC 44POS TIN
- Stock
- 791
- In Stock :
- 791
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- IC Sockets
- Housing Material :
- Polyphenylene Sulfide (PPS)
- Contact Finish - Mating :
- Tin
- Type :
- PLCC
- Factory Lead Time :
- 12 Weeks
- Mounting Type :
- Through Hole
- Row Spacing :
- 2.54 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Length :
- 3.2004mm
- Voltage - Rated AC :
- 250V
- Insulation Resistance :
- 1GOhm
- Height :
- 8.15mm
- Mount :
- Through Hole
- Connector Type :
- Socket
- Contact Plating :
- Tin
- Depth :
- 23.18mm
- REACH SVHC :
- No SVHC
- Current Rating (Amps) :
- 1A
- Max Operating Temperature :
- 105°C
- Contact Material - Post :
- COPPER ALLOY
- Contact Finish Thickness - Mating :
- 100.0μin 2.54μm
- Termination :
- Solder
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Package / Case :
- PLCC
- Contact Resistance :
- 20mOhm
- Min Operating Temperature :
- -40°C
- Orientation :
- Straight
- Pitch :
- 2.54mm
- Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C~105°C
- Number of Positions or Pins (Grid) :
- 44 (4 x 11)
- Material Flammability Rating :
- UL94 V-0
- Radiation Hardening :
- No
- Contact Material - Mating :
- COPPER ALLOY
- Lead Pitch :
- 2.54mm
- Packaging :
- Tube
- Number of Positions :
- 44
- Termination Post Length :
- 0.126 3.20mm
- Pitch - Post :
- 0.100 2.54mm
- Length :
- 23.18mm
- Current Rating :
- 1A
- Feature :
- Closed Frame
- Gender :
- FEMALE
- Pitch - Mating :
- 0.050 1.27mm
- Contact Finish - Post :
- Tin
- RoHS Status :
- RoHS Compliant
- Insulation Material :
- Polyphenylene
- Number of Contacts :
- 44
- Lead Free :
- Lead Free
- Voltage - Rated :
- 250V
- Datasheets
- 54020-44030LF
54020-44030LF Documents
54020-44030LF datasheet pdf and Sockets for ICs, Transistors product details from Amphenol ICC (FCI) stock available at Xinshop
