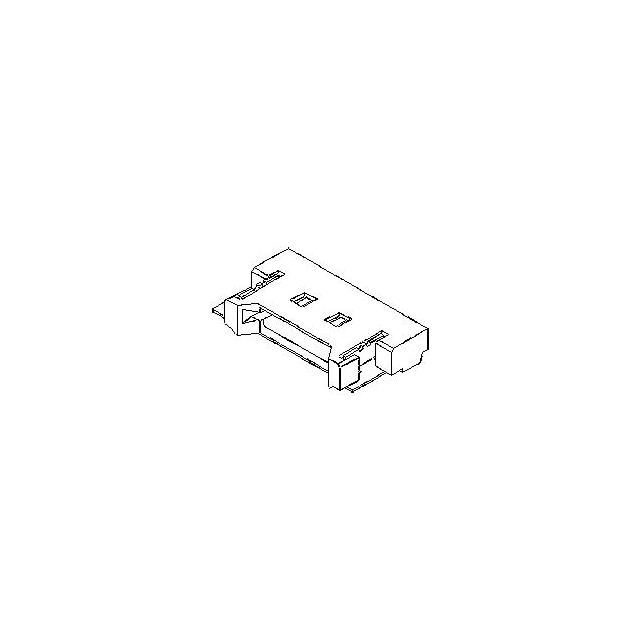

53780-0370

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Reliability :

COMMERCIAL

Flammability Rating :

UL 94 V-0

Contact Style :

SQ PIN-SKT

Operating Temp Range :

-40C to 85C

Voltage Rating Max :

125V

Mounting Option 1 :

LOCKING

Type :

Wire to Board

Termination Style :

Solder

Number of Positions :

3 Position

Minimum Operating Temperature :

- 40 C

Contact Material :

Phosphor Bronze

Number of Contact Rows :

1

DIN Conformance :

No

Plating Thickness :

8u inch

Contact Resistance :

20 mΩ

Housing Color :

Natural

Subcategory :

Headers and Wire Housings

Mounting :

Surface Mount

Insulator Color :

Natural

Operating Temperature :

-40 to 85 °C

Body/Shell Style :

Receptacle

Packaging :

Tape and Reel

Base/Housing Material :

Thermoplastic

Insertion Force-Max :

2.085 N

JESD-609 Code :

e3

Number Of PCB Rows :

1

Tradename :

PanelMate

Product :

Headers

Product Status :

Active

Factory Lead Time :

16 Weeks

Maximum Operating Temperature :

+ 85 C

MIL Conformance :

No

Manufacturer :

Molex

Polarization Key :

POLARIZED HOUSING

Body Orientation :

RIGHT ANGLE

Termination Type :

Surface Mount

Body Breadth :

0.073 inch

Mounting Style :

Surface Mount

Terminal Pitch :

1.25 mm

Number of Contacts :

3(POS)

Pbfree Code :

yes

Application :

Signal, Wire-to-Board

Body Depth :

0.256 inch

Gender :

HDR

Pitch (mm) :

1.25(mm)

Brand :

Molex

UL Flammability Code :

94V-0

Product Height (mm) :

1.85(mm)

Reach Compliance Code :

Compliant

PCB Contact Pattern :

RECTANGULAR

Total Number of Contacts :

3

Connector System :

Wire to Board

Series :

PanelMate

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Pattern :

RECTANGULAR

Product Category :

Headers and Wire Housings

Accessory Type :

-

Termination Method :

Solder

Product Length :

8.9 mm

Number of Rows :

1

Mounting Angle :

RIGHT ANGLE

Durability :

50 Cycles

Dielectric Withstanding Voltage :

700VAC V

Insulation Resistance :

100000000 Ω

Package :

Box

Mounting Type :

Surface Mount

Withdrawl Force-Min :

.199882 N

Option :

GENERAL PURPOSE

Rated Current (Signal) :

1 A

Contact Plating :

Gold Over Nickel

Contact Gender :

Pin (Male)

Reference Standard :

UL, CSA

Mating Contact Pitch :

0.049 inch

Product Length (mm) :

8.9(mm)

Contact Type :

-

Mixed Contacts :

No

Product Depth (mm) :

5.5(mm)

Contact Finish Termination :

Matte Tin (Sn)

IEC Conformance :

No

Voltage Rating :

125 V

Additional Feature :

ROHS COMPLIANT and T/R PACKAGE

Product Type :

Headers and Wire Housings

RoHS :

Details

Housing Material :

Thermoplastic

Pitch :

1.2500 mm

Current Rating :

1.0A

Contact Resistance Max :

40(mohm)

Connector Type :

BOARD CONNECTOR

Filter Feature :

No

Current Rating (Max) :

1/Contact(A)
