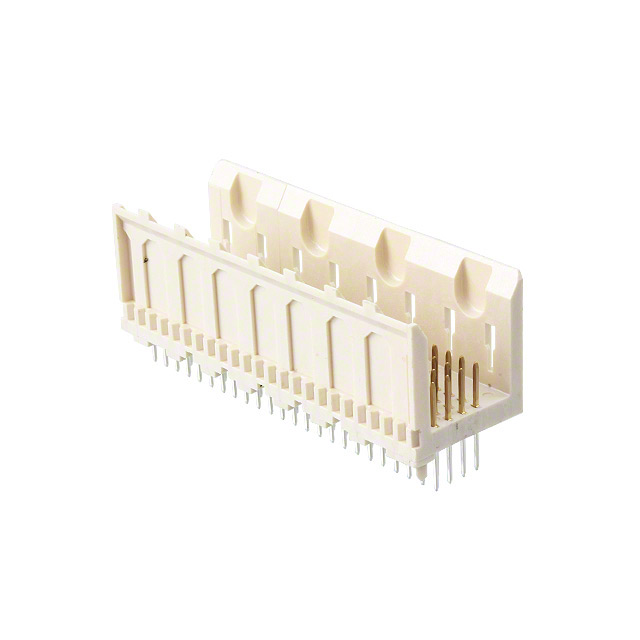

536513-3
Or copy the link below:
- Mfr.Part #
- 536513-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER FUTUREBUS 96POS PCB
- Stock
- 41,115
- In Stock ：
- 41,115
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Pbfree Code :
- No
- Contact Material :
- Bronze
- Total Number of Contacts :
- 96
- Number of Conductors :
- ONE
- RoHS Status :
- Non-RoHS Compliant
- Insertion Force-Max :
- .695 N
- Length - Termination :
- 0.167 inch
- Pitch :
- 2mm
- Contact Pattern :
- RECTANGULAR
- Filter Feature :
- No
- Body Depth :
- 0.669 inch
- Polarization Key :
- POLARIZED HOUSING
- Housing Material :
- Polymer
- Body Breadth :
- 0.622 inch
- Mating Post Length :
- 5mm
- Contact Finish - Mating :
- NOT SPECIFIED
- Contact Plating :
- Gold
- Number of Rows :
- 4
- ECCN Code :
- EAR99
- Reliability :
- COMMERCIAL
- Additional Feature :
- Z-PACK
- Contact Style :
- SQ PIN-SKT
- DIN Conformance :
- No
- PCB Contact Row Spacing :
- 2.0066 mm
- PCB Mounting Orientation :
- Vertical
- PCB Contact Pattern :
- RECTANGULAR
- ELV :
- Compliant
- Lead Length :
- 4.25mm
- Mating Contact Row Spacing :
- 0.079 inch
- Body/Shell Style :
- Receptacle
- IEC Conformance :
- No
- Termination :
- Press-Fit
- Gender :
- Male
- Mount :
- Through Hole
- Max Voltage Rating (AC) :
- 30V
- Option :
- GENERAL PURPOSE
- Number Of PCB Rows :
- 4
- MIL Conformance :
- No
- Body Length or Diameter :
- 1.885 inch
- Voltage - Rated AC :
- 30V
- Number of Signal Positions :
- 96
- Connector Type :
- Header, Pin, Plug
- Mixed Contacts :
- No
- Datasheets
- 536513-3
