536297-5
Or copy the link below:
- Mfr.Part #
- 536297-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description

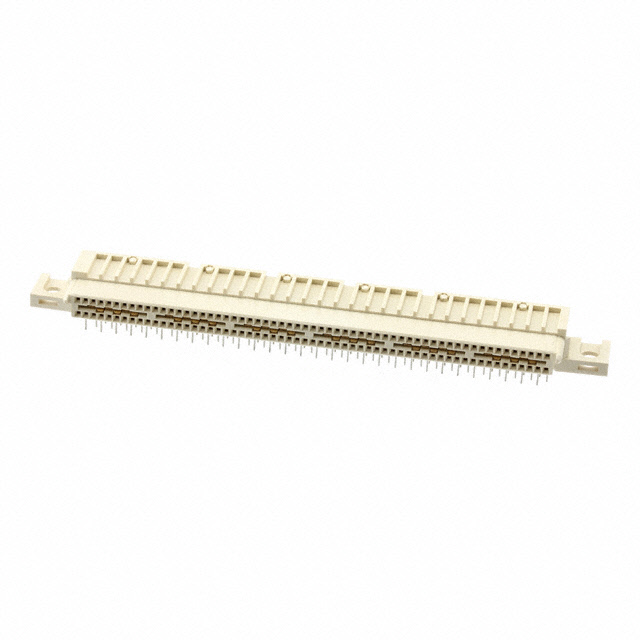

- CONN RCPT 120P 0.05 GOLD PCB R/A
- Stock
- 38,637
- In Stock ：
- 38,637
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- PCB Contact Pattern :
- RECTANGULAR
- Pitch :
- 1.27mm
- Preloaded :
- yes
- Contact Pattern :
- RECTANGULAR
- Total Number of Contacts :
- 120
- Stackable :
- No
- Housing Color :
- Natural
- Number of Rows :
- 2
- Contact Style :
- SQ PIN-SKT
- Number of Conductors :
- ONE
- Dielectric Withstanding Voltage :
- 500VAC V
- Number of Positions :
- 120
- Contact Plating :
- Gold
- Durability :
- 50 Cycles
- Insulation Resistance :
- 5000000000Ohm
- Max Operating Temperature :
- 125°C
- Body Length or Diameter :
- 3.7 inch
- PCB Mounting Orientation :
- RIGHT ANGLE
- ELV :
- Compliant
- Length - Tail :
- 3.18mm
- Number Of PCB Rows :
- 5
- Orientation :
- RIGHT ANGLE
- Polarization Key :
- POLARIZED HOUSING
- Body Breadth :
- 0.315 inch
- Contact Material :
- Bronze
- Housing Material :
- Thermoplastic
- Row Spacing - Mating :
- 2.54 mm
- RoHS Status :
- RoHS Compliant
- Termination :
- Solder
- Connector Type :
- Receptacle, Socket
- Reliability :
- COMMERCIAL
- Gender :
- FEMALE
- Mount :
- Through Hole
- Height :
- 8mm
- Plating Thickness :
- 30μin
- Body Depth :
- 0.48 inch
- Min Operating Temperature :
- -65°C
- Datasheets
- 536297-5
2 Rows Receptacle, Socket Solder Bronze 120 Positions
536297-5 Overview
This product is packaged in a Receptacle, Socket carton.Ideally, it should be used when the temperature is below 125°C.Temperature must be -65°C to operate this device.Mounting of the part is based on Through Hole.
