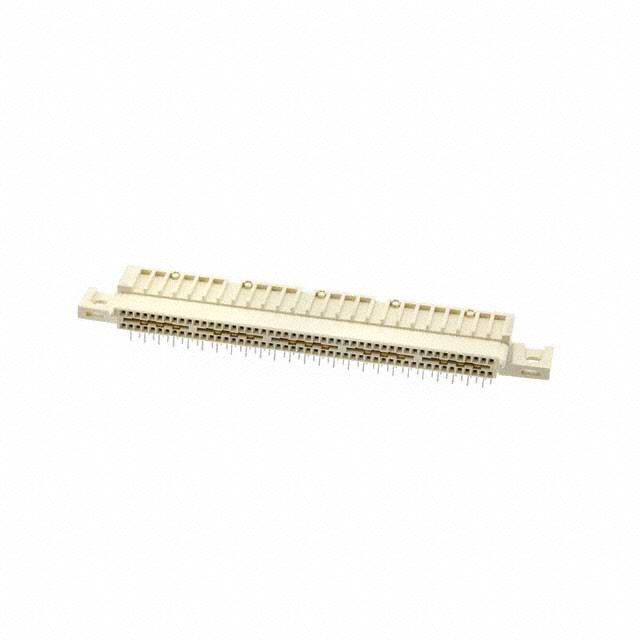

536297-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Receptacles, Female Sockets

Dielectric Withstanding Voltage :

500VAC V

Housing Color :

Natural

Number of Conductors :

ONE

Number of Positions :

100

Durability :

50 Cycles

RoHS Status :

Non-RoHS Compliant

Number Of PCB Rows :

5

Min Operating Temperature :

-65°C

Plating Thickness :

30μin

Reliability :

COMMERCIAL

Mount :

Through Hole

ELV :

Compliant

Additional Feature :

STAGGERED CONFIGURATION

Option :

GENERAL PURPOSE

Contact Plating :

Gold

Length - Tail :

3.18mm

ECCN Code :

EAR99

Insulation Resistance :

5000000000Ohm

HTS Code :

8536.69.40.40

Mixed Contacts :

No

Body Breadth :

0.315 inch

Pbfree Code :

No

Contact Material :

Bronze

PCB Mounting Orientation :

RIGHT ANGLE

Housing Material :

Thermoplastic

Number of Rows :

2

Total Number of Contacts :

100

Max Operating Temperature :

125°C

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Connector Type :

Receptacle, Socket

Filter Feature :

No

Orientation :

RIGHT ANGLE

Stackable :

No

Height :

8mm

PCB Contact Pattern :

STAGGERED

DIN Conformance :

No

Polarization Key :

POLARIZED HOUSING

Pitch :

1.27mm

Termination :

Solder

Preloaded :

yes

Row Spacing - Mating :

2.54 mm

IEC Conformance :

No

MIL Conformance :

No

Contact Pattern :

RECTANGULAR

Gender :

FEMALE
