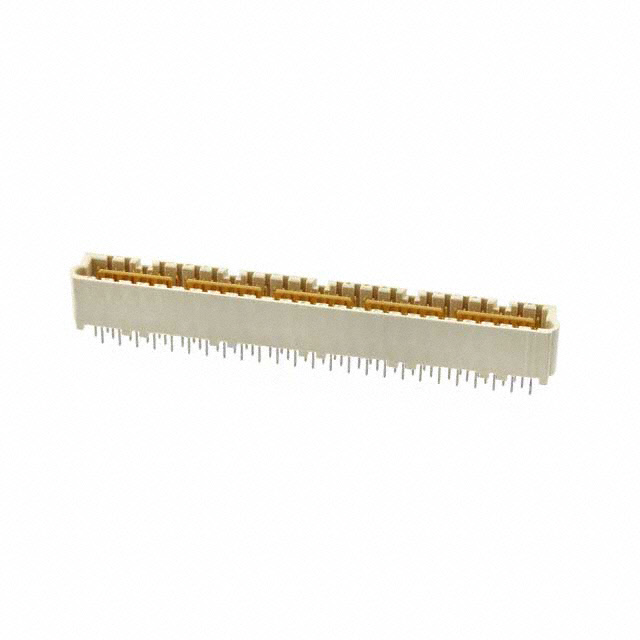

536280-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Row Spacing - Mating :

0.100 (2.54mm)

Packaging :

Tube

RoHS Status :

Non-RoHS Compliant

Connector Type :

PLUG

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mounting Type :

Through Hole

Shrouding :

Shrouded - 4 Wall

Option :

GENERAL PURPOSE

Insulation Height :

0.340 8.64mm

Number of Positions Loaded :

All

Insulation Material :

Thermoplastic

HTS Code :

8536.69.40.40

Length - Tail :

2.41mm

Pitch - Mating :

0.050 1.27mm

PCB Mounting Orientation :

Vertical

Current Rating (Amps) :

Varies by WireGAuge

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Durability :

50 Cycles

Factory Lead Time :

13 Weeks

DIN Conformance :

No

Length :

68.94mm

Package / Case :

TSSOP

Contact Type :

Male Pin

Depth :

7.24mm

Operating Temperature :

-65°C~125°C

Contact Shape :

Square

Filter Feature :

No

PCB Contact Pattern :

STAGGERED

Reliability :

COMMERCIAL

Fastening Type :

Push-Pull

Additional Feature :

HIGH DENSITY, POLARZED

Contact Finish - Mating :

Gold

Contact Material :

Phosphor Bronze

Preloaded :

yes

Published :

1999

ECCN Code :

EAR99

Voltage - Rated :

30VAC

Series :

Micro-Strip

Number Of PCB Rows :

5

Contact Finish - Post :

Tin-Lead

Mount :

Surface Mount, Through Hole

IEC Conformance :

No

Feature :

Ground Bus (Plane)

ELV :

Compliant

Insulation Resistance :

5000000000Ohm

Stack Height :

10.92mm

MIL Conformance :

No

Termination :

Solder

Orientation :

Straight

Mixed Contacts :

No

Dielectric Withstanding Voltage :

500VAC V

Height :

8.636mm

Mating Contact Pitch :

0.05 inch

Contact Finish Thickness - Post :

100.0μin 2.54μm

Number of Positions :

100

Number of Rows :

2

Number of Conductors :

ONE

Contact Length - Post :

0.095 2.41mm

Style :

Board to Board

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Color :

Natural

Polarization Key :

POLARIZED HOUSING

Interface :

I2C, SMBus

Plating Thickness :

30μin
