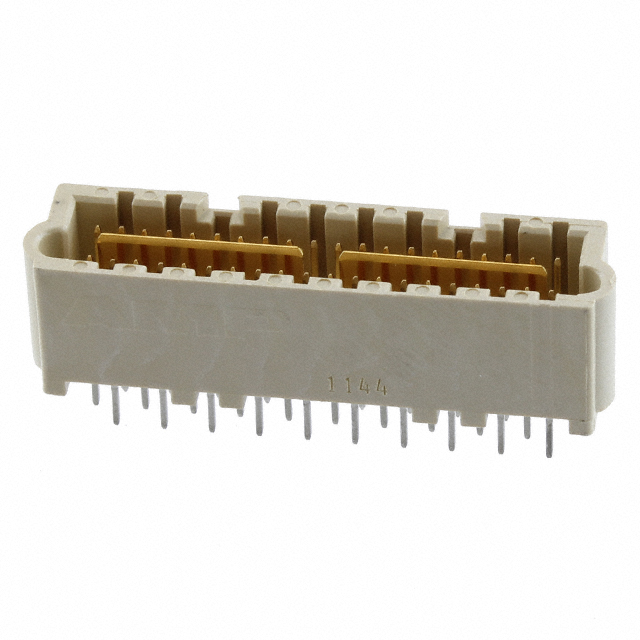

536280-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Factory Lead Time :

13 Weeks

Mount :

Through Hole

Mating Contact Pitch :

0.05 inch

Contact Shape :

Square

Feature :

Ground Bus (Plane)

Published :

1999

Preloaded :

yes

Option :

GENERAL PURPOSE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Insulation Height :

0.340 8.64mm

RoHS Status :

Non-RoHS Compliant

Shrouding :

Shrouded - 4 Wall

Dielectric Withstanding Voltage :

500VAC V

Stack Height :

10.92mm

Contact Length - Post :

0.095 2.41mm

IEC Conformance :

No

Length :

30.84mm

Housing Color :

Natural

Polarization Key :

POLARIZED HOUSING

MIL Conformance :

No

Termination :

Solder

Contact Material :

Phosphor Bronze

Lead Free :

Contains Lead

Mixed Contacts :

No

Insulation Resistance :

5000000000Ohm

Number of Positions :

40

DIN Conformance :

No

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Fastening Type :

Push-Pull

Insulation Material :

Thermoplastic

ELV :

Compliant

Current Rating (Amps) :

Varies by WireGAuge

Additional Feature :

HIGH DENSITY, POLARZED

Row Spacing - Mating :

0.100 (2.54mm)

Number Of PCB Rows :

5

Contact Type :

Male Pin

Operating Temperature :

-65°C~125°C

PCB Mounting Orientation :

Vertical

Packaging :

Tube

PCB Contact Pattern :

STAGGERED

Contact Finish - Mating :

Gold

Series :

Micro-Strip

Pitch - Mating :

0.050 1.27mm

Reliability :

COMMERCIAL

Orientation :

Straight

Body Depth :

0.34 inch

Connector Type :

PLUG

Mounting Type :

Through Hole

Style :

Board to Board

Height :

8.636mm

Voltage - Rated :

30VAC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish Thickness - Post :

100.0μin 2.54μm

Filter Feature :

No

Length - Tail :

2.41mm

Contact Finish - Post :

Tin-Lead

Number of Conductors :

ONE

Number of Rows :

2

Number of Positions Loaded :

All

Durability :

50 Cycles

Plating Thickness :

30μin
