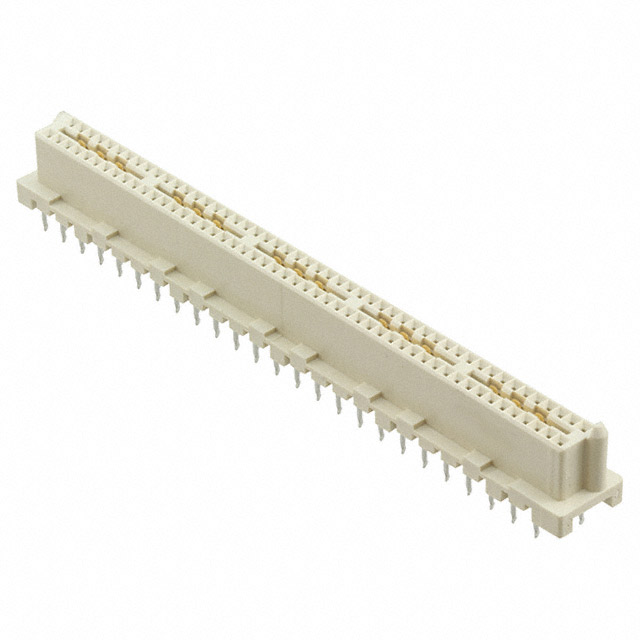

536279-4
Or copy the link below:
- Mfr.Part #
- 536279-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 100POS 0.05 GOLD PCB
- Stock
- 44,416
- In Stock ：
- 44,416
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Fastening Type :
- Push-Pull
- Connector Type :
- Receptacle
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Pitch - Mating :
- 0.050 1.27mm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- MIL Conformance :
- No
- Series :
- Micro-Strip
- Mount :
- Through Hole
- Feature :
- Board Guide, Ground Bus (Plane)
- Length - Tail :
- 2.41mm
- Depth :
- 7.24mm
- Insulation Color :
- Natural
- Contact Length - Post :
- 0.095 2.41mm
- Height :
- 8.12mm
- Factory Lead Time :
- 13 Weeks
- Mounting Type :
- Through Hole
- Number of Positions Loaded :
- All
- ELV :
- Compliant
- Insulation Height :
- 0.320 8.13mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Stackable :
- No
- IEC Conformance :
- No
- Voltage - Rated :
- 30VAC
- Style :
- Board to Board
- Contact Finish - Post :
- Tin-Lead
- Operating Temperature :
- -65°C~125°C
- Contact Type :
- Female Socket
- PCB Mounting Orientation :
- Vertical
- Mixed Contacts :
- No
- Stack Height (Mating) :
- 10.92mm 17.78mm 18.75mm
- Filter Feature :
- No
- Termination :
- Solder
- Published :
- 2005
- Length :
- 67.06mm
- JESD-609 Code :
- e0
- Contact Material :
- Phosphor Bronze
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Number of Rows :
- 2
- Orientation :
- Straight
- Preloaded :
- yes
- Insulation Material :
- Thermoplastic
- Option :
- GENERAL PURPOSE
- Packaging :
- Tube
- RoHS Status :
- Non-RoHS Compliant
- Additional Feature :
- STAGGERED CONFIGURATION
- Contact Shape :
- Square
- Number of Contacts :
- 100
- DIN Conformance :
- No
- Stack Height :
- 18.7452mm
- Contact Finish - Mating :
- Gold
- Datasheets
- 536279-4
536279-4 Documents
2 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Thermoplastic Female Socket
536279-4 Overview
The packaging contains Receptacle.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tube.Product number Micro-Strip belongs to the Micro-Strip Series.Further, there are features such as STAGGERED CONFIGURATION, to name only a few.In many ways, it is more powerful due to its Board Guide, Ground Bus (Plane) feature.There is a Through Hole mount on the part.This device operates at a temperature of -65°C~125°C.
536279-4 Features
Micro-Strip series
536279-4 Applications
There are a lot of TE Connectivity AMP Connectors
536279-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
