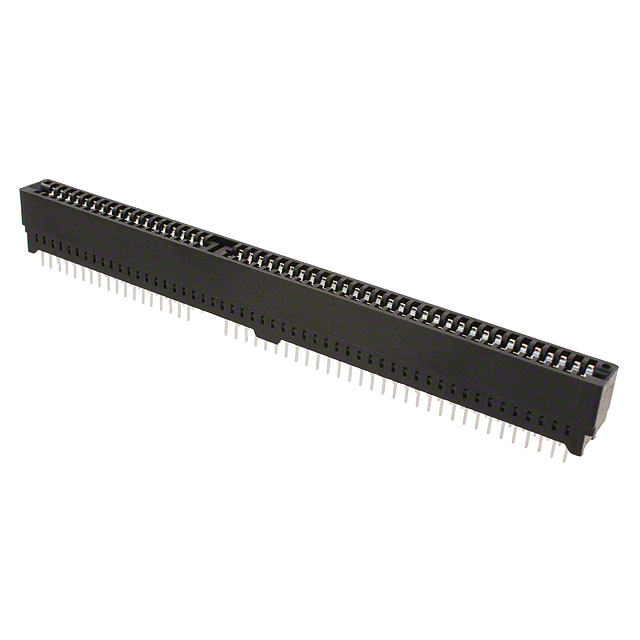

536128-1
Or copy the link below:
- Mfr.Part #
- 536128-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN CARDEDGE FMALE 98POS 0.100
- Stock
- 26,658
- In Stock ：
- 26,658
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Material - Insulation :
- Polyester, Glass Filled
- Connector Type :
- CARD EDGE CONNECTOR
- Body Depth :
- 0.55 inch
- Color :
- Black
- Insulation Resistance :
- 5000000000Ohm
- Reference Standard :
- UL, CSA
- Number Of PCB Rows :
- 2
- Number of Contacts :
- 52
- Read Out :
- Dual
- Body Breadth :
- 0.368 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Contact Pattern :
- RECTANGULAR
- RoHS Status :
- Non-RoHS Compliant
- Dielectric Withstanding Voltage :
- 1000VAC V
- Number of Positions :
- 98
- Mounting Type :
- Through Hole
- Lead Free :
- Contains Lead
- Termination :
- Press-Fit
- Packaging :
- Bulk
- Published :
- 1997
- Number of Rows :
- 2
- Contact Pattern :
- RECTANGULAR
- Body Length or Diameter :
- 5.46 inch
- Gender :
- FEMALE
- Reliability :
- COMMERCIAL
- Contact Finish :
- Gold
- Card Type :
- Special 18/31 Dual Combo
- Contact Material :
- Phosphor Bronze
- PCB Contact Row Spacing :
- 5.08 mm
- Insertion Force-Max :
- 1.668 N
- Mount :
- Through Hole
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Contact Resistance :
- 10MOhm
- Contact Style :
- BELLOWED TYPE
- Body/Shell Style :
- PLUG
- Operating Temperature :
- -55°C~ 85°C
- Plating Thickness :
- 30μin
- Series :
- Standard Edge II
- Number of Conductors :
- ONE
- Card Thickness :
- 0.054 ~ 0.070 1.37mm ~ 1.78mm
- Pitch :
- 0.100 2.54mm
- Datasheets
- 536128-1
536128-1 Documents
Female Black 0.100 2.54mm Phosphor Bronze 2 Rows Bulk Press-Fit Gold 98 Positions Polyester, Glass Filled
536128-1 Overview
The material was packaged according to the specifications of Bulk.It's recommended you mount it type Through Hole.This device is connected through the connector socket CARD EDGE CONNECTOR.In this case, the Standard Edge II indicates the series of the device.
536128-1 Features
Standard Edge II series
536128-1 Applications
There are a lot of TE Connectivity AMP Connectors
536128-1 Edgeboard Connectors applications.
