Mfr.Part #
534975-5
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT 12POS 0.1 GOLD PCB R/A
Stock
29,865
In Stock :
29,865

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Receptacles, Female Sockets
Mating Post Length :
3.17mm
Gender :
Receptacle
Current Rating :
3A
Filter Feature :
No
Row Spacing - Mating :
2.54 mm
Length - Termination :
0.115 inch
Additional Feature :
AMPMODU
Max Operating Temperature :
105°C
Lead Length :
2.92mm
Lead Free :
Contains Lead
ELV :
Non-Compliant
Durability :
75 Cycles
Number of Conductors :
ONE
Lifecycle Status :
ACTIVE (Last Updated: 4 days ago)
Polarization Key :
POLAR PIN POSITION
PCB Contact Pattern :
RECTANGULAR
Number Of PCB Rows :
2
Approval Agency :
CSA
DIN Conformance :
No
Number of Contacts :
12
Min Operating Temperature :
-65°C
Mount :
Through Hole
PCB Contact Row Spacing :
7.874 mm
Housing Material :
Thermoplastic
PCB Thickness :
1.57mm
Orientation :
RIGHT ANGLE
Mating Alignment :
With
Color :
Black
Contact Style :
BELLOWED TYPE
Contact Gender :
FEMALE
Radiation Hardening :
No
Pitch :
2.54mm
RoHS Status :
RoHS Compliant
Insulation Resistance :
5GOhm
Contact Plating :
Gold, Tin
Dielectric Withstanding Voltage :
750VAC V
Option :
GENERAL PURPOSE
UL Flammability Code :
94V-0
Mixed Contacts :
No
Plating :
Gold
HTS Code :
8536.69.40.40
Number of Rows :
2
Flammability Rating :
UL94 V-0
MIL Conformance :
No
Contact Material :
Bronze
Contact Finish Thickness - Mating :
381 nm
Contact Rating (Current) :
3A
Voltage - Rated AC :
250V
Termination :
Solder
IEC Conformance :
No
Rated Current (Signal) :
2A
High Temperature Compatible :
yes
Connector Type :
Connector, Receptacle, Socket
Circuit Application :
Signal
Packaging :
Bulk
Body Length or Diameter :
0.858 inch
Pbfree Code :
No
Reliability :
COMMERCIAL
PCB Mount Alignment :
Without
ECCN Code :
EAR99
Operating Supply Voltage :
250V
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
PCB Mounting Orientation :
RIGHT ANGLE
Contact Pattern :
RECTANGULAR
Datasheets
534975-5
Introducing Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 534975-5 from Chip IC,where excellence meets affordability. This product stands out with its 534975-5 pinout, 534975-5 datasheet PDF, 534975-5 amp .Beyond Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 534975-5 ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

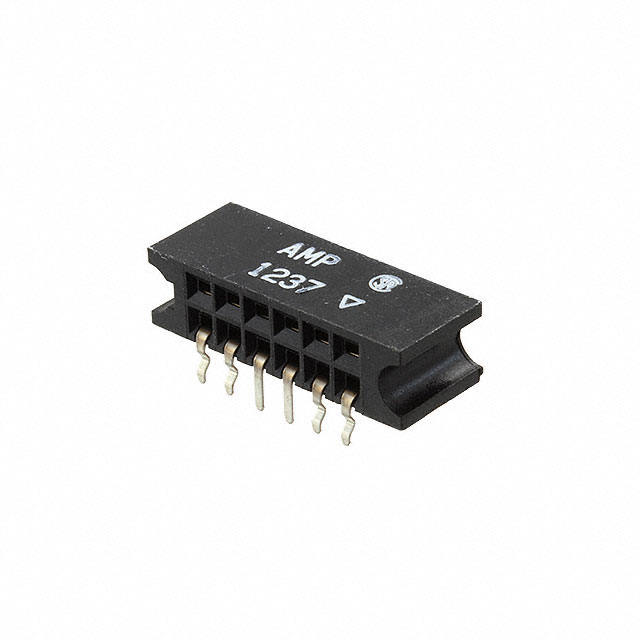

TE Connectivity AMP Connectors 534975-5


2 Rows Connector, Receptacle, Socket Solder Bronze Bulk

534975-5 Overview


This product is packaged in a Connector, Receptacle, Socket box.An Bulk case is utilized for packaging the product.Furthermore, there are other features such as AMPMODU, to name a few.Use it below 105°C.A minimum temperature of -65°C must be maintained for the operation of this device.By Through Hole, the part is mounted.The operating voltage of this memory is 250V.
