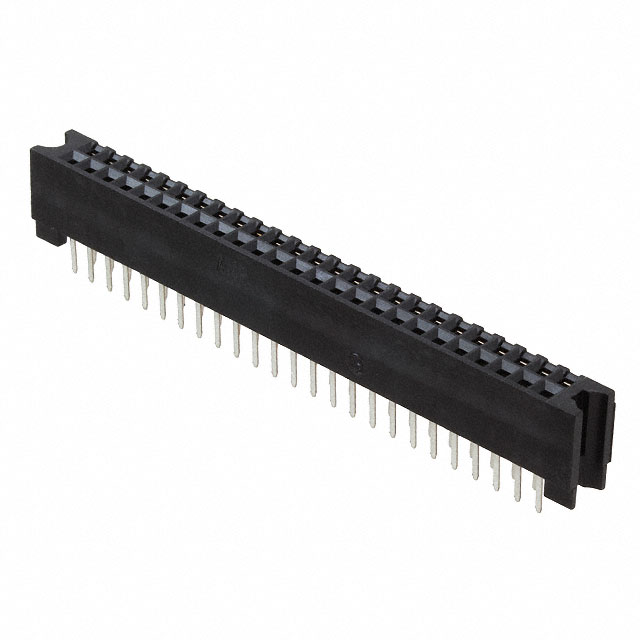

534972-3
Or copy the link below:
- Mfr.Part #
- 534972-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 50POS 0.1 GOLD PCB
- Stock
- 374
- In Stock ：
- 374
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- DIN Conformance :
- No
- Reliability :
- COMMERCIAL
- PCB Mount Alignment :
- Without
- ECCN Code :
- EAR99
- Feature :
- Guide Pin Ears
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Mixed Contacts :
- No
- IEC Conformance :
- No
- Filter Feature :
- No
- Number of Conductors :
- ONE
- HTS Code :
- 8536.69.40.40
- Connector Type :
- Receptacle
- Factory Lead Time :
- 20 Weeks
- Max Operating Temperature :
- 105°C
- Contact Gender :
- FEMALE
- Contact Shape :
- Square
- Termination :
- Solder
- Rated Current (Signal) :
- 3A
- Min Operating Temperature :
- -65°C
- Number of Positions Loaded :
- All
- Published :
- 2008
- Sealable :
- No
- PCB Thickness :
- 1.397mm
- Contact Type :
- Female Socket
- Plating Thickness :
- 30μin
- PCB Contact Pattern :
- RECTANGULAR
- UL Flammability Code :
- 94V-0
- Contact Plating :
- Gold, Tin
- Insulation Material :
- Polyphenylene Sulfide (PPS)
- Operating Supply Voltage :
- 250V
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Pitch - Mating :
- 0.100 2.54mm
- ELV :
- Compliant
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Current Rating :
- 3A
- MIL Conformance :
- No
- Packaging :
- Tube
- Contact Length - Post :
- 0.115 2.92mm
- Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.410 10.41mm
- Number Of PCB Rows :
- 2
- Depth :
- 6.04mm
- Number of Positions :
- 50
- Mounting Type :
- Through Hole
- Contact Finish - Mating :
- Gold
- Circuit Application :
- Signal
- High Temperature Compatible :
- yes
- Mating Contact Pitch :
- 0.1 inch
- Option :
- GENERAL PURPOSE
- Lead Length :
- 2.92mm
- Pbfree Code :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Post :
- 50.0μin 1.27μm
- Mount :
- Through Hole
- Housing Material :
- Thermoplastic
- Approval Agency :
- CSA
- Mating Alignment :
- With
- Polarization Key :
- POLARIZED HOUSING
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Insulation Color :
- Black
- Style :
- Board to Board
- Number of Rows :
- 2
- RoHS Status :
- Non-RoHS Compliant
- Length :
- 70.05mm
- Series :
- AMPMODU Mod II
- Orientation :
- Vertical
- Height :
- 6.0452mm
- Insulation Resistance :
- 5GOhm
- Contact Finish - Post :
- Tin-Lead
- Current Rating :
- 3A
- Contact Resistance :
- 12mOhm
- Contact Material :
- Phosphor Bronze
- Voltage - Rated AC :
- 250V
- Max Voltage Rating (AC) :
- 250V
- Lead Free :
- Contains Lead
- Fastening Type :
- Push-Pull
- Datasheets
- 534972-3
2 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Polyphenylene Sulfide (PPS) 50 Positions Female Socket
534972-3 Overview
The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Tube case is necessary to package the product.There is a product in the AMPMODU Mod II Series.When the temperature is below 105°C, it is best to use it.A minimum operating temperature of -65°C is required for this device.There are a number of advantages to its Guide Pin Ears feature.Part Through Hole is mounted to the part.250V is the operating supply voltage for this memory.
534972-3 Features
AMPMODU Mod II series
534972-3 Applications
There are a lot of TE Connectivity AMP Connectors
534972-3 Rectangular Connectors applications.
