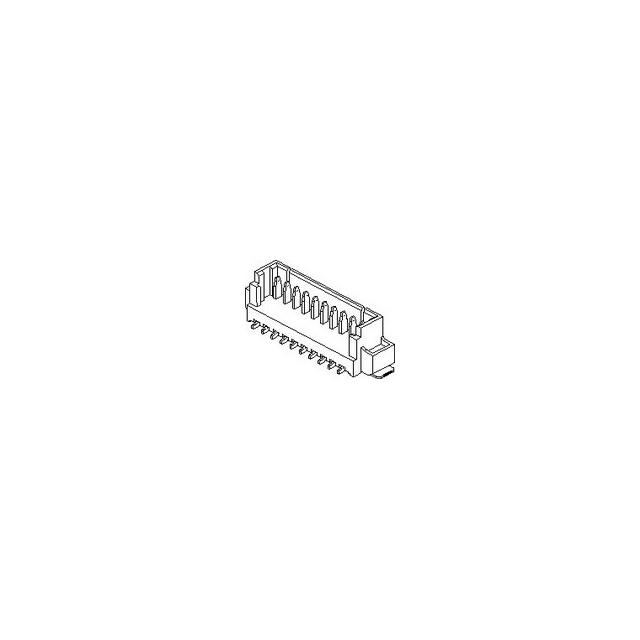

53398-0771

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Connector Type :

Header

Product Length :

13.9 mm

Total number of pins :

7

Nominal current :

1A

Mounting :

Surface Mount

Package / Case :

SMD

Contact Plating :

Tin

Mounting Style :

Surface Mount

Content :

1000pc(s)

Connection :

SMT

Product Length (mm) :

13.9(mm)

Nominal current - rounded value :

1A

Product Depth (mm) :

4.2(mm)

Min. temperature :

-40°C

Product Height (mm) :

4.8(mm)

Current Rating (Max) :

1/Contact(A)

Board contact surface :

Tin

Pitch :

0.049" 1.25mm

RoHS-compliant :

yes

Pitch (mm) :

1.25(mm)

Product Status :

Active

Current Rating :

1.0A

Case material :

Nylon (NL)

Gender :

Header

Connector contact surface :

Tin

Manufacturer part # :

533980771

Housing Color :

Natural

Flammability :

94V-0

Series :

PicoBlade

CS :

1.25mm

Packaging :

Tape and Reel (TR)

Connector System :

Wire to Board

Base/Housing Material :

NYLON 46

Operating Temperature :

-40 to 85 °C

Termination Method :

Solder

Operating Temp Range :

-40C to 105C

Nominal voltage :

125V

Number of Contact Rows :

1

Number of Positions :

7

Type :

Molex MOL Power and Signal Sol.

Max. temperature :

+105°C

Number of Contacts :

7(POS)

RoHS Status :

RoHS Compliant

Voltage Rating Max :

125V

Contact Type :

Male Blade

Mounting Type :

Surface Mount

No. of rows :

1

Orientation :

Vertical

Application :

Signal

Packaging type :

Tape on Full reel

Contact Material :

Bronze

Contact Resistance Max :

20(mohm)

Housing Material :

Nylon 4/6

Features :

+ locking mechanism

Body Orientation :

Straight

Number of Rows :

1
