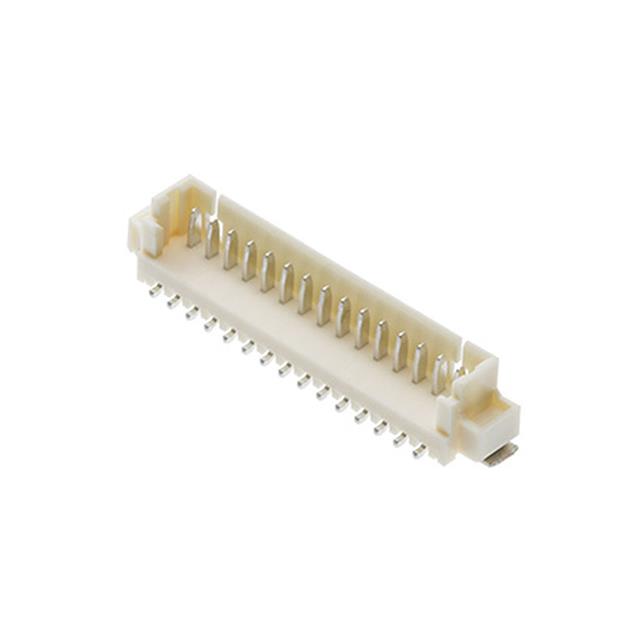

53398-0476

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Packaging :

Tape and Reel

Housing Color :

Black

Type :

Shrouded Header

Termination Method :

Solder

Termination Post Length :

0.6 mm

Application :

Signal, Wire-to-Board

Number of Positions :

4 Position

Operating Temp Range :

-40C to 85C

Package :

Box

Tradename :

PicoBlade

Number of Contact Rows :

1

Subcategory :

Headers and Wire Housings

HTS Code :

8536.69.40.40

Number of Rows :

1 Row

Operating Temperature :

-40 to 85 °C

Product Depth (mm) :

4.2(mm)

Body Orientation :

Straight

Total Number of Contacts :

4

Pitch :

1.2500 mm

Contact Style :

BLADE PIN-SKT

ECCN Code :

EAR99

Contact Pattern :

RECTANGULAR

Product Height (mm) :

4.8(mm)

Current Rating :

1 A

Plating Thickness :

39u inch

Series :

53398

Contact Material :

Phosphor Bronze

Board Mounting Option :

FITTING NAIL

Reach Compliance Code :

Compliant

Voltage Rating Max :

125V

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Body Breadth :

0.146 inch

Polarization Key :

POLARIZED HOUSING

Housing Material :

Nylon 4/6

Product Status :

Active

Termination Type :

Surface Mount

Product Length (mm) :

10.15(mm)

Accessory Type :

-

Insulator Color :

Black

Pitch (mm) :

1.25(mm)

Gender :

Header

Connector Type :

BOARD CONNECTOR

Manufacturer :

Molex

Additional Feature :

EMBOSSED TAPE PACKAGING

Number Of PCB Rows :

1

Mounting Style :

Surface Mount

Maximum Operating Temperature :

+ 85 C

Number of Contacts :

4(POS)

Termination Style :

Solder

Contact Finish Termination :

TIN OVER NICKEL

Contact Gender :

Pin (Male)

Product :

Headers

Mating Contact Pitch :

0.049 inch

Contact Type :

-

Voltage Rating :

125 V

Terminal Pitch :

1.2446 mm

RoHS :

Details

Brand :

Molex

Contact Plating :

Tin

Base/Housing Material :

Thermoplastic

Mounting Option 1 :

LOCKING

Mounting Type :

BOARD

Current Rating (Max) :

1/Contact(A)

Mounting :

Surface Mount

Contact Resistance Max :

20(mohm)

Product Type :

Headers and Wire Housings

Flammability Rating :

UL 94 V-0

Product Category :

Headers and Wire Housings

Mounting Angle :

Straight

Minimum Operating Temperature :

- 40 C

Body Depth :

0.185 inch
