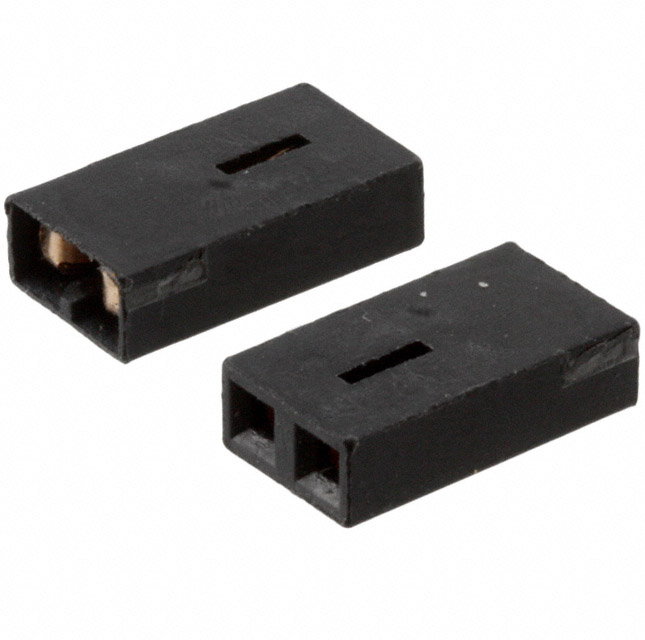

530153-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Shunts, Jumpers

Insulator Color :

Black

Gender :

F

Brand Name :

AMP

Total Number of Contacts :

2

Insulation Resistance :

1000000000 Ω

Number of Positions :

2 Position

Contact Gender :

FEMALE

Contact Resistance Max :

12(mohm)

Contact Plating :

Gold

Product Height (mm) :

9.14(mm)

Mounting Option 1 :

LOCKING

Product Length :

5.08 mm

Rated Current (Signal) :

1 A

Dielectric Withstanding Voltage :

1000VAC V

Reach Compliance Code :

Compliant

Operating Temp Range :

-65C to 105C

Product Depth (mm) :

9.14(mm)

Product Type :

Headers and Wire Housings

Reference Standard :

UL

Mating Contact Pitch :

0.1 inch

Housing Color :

Black

Pbfree Code :

yes

Number of Contact Rows :

1

Product Length (mm) :

5.08(mm)

Mounting Style :

Straight

Pitch (mm) :

2.54(mm)

Packaging :

Bulk

Body Breadth :

0.1 inch

Operating Temperature :

-65 to 105 °C

Number of Contacts :

2(POS)

Reliability :

COMMERCIAL

Polarization Key :

POLARIZED HOUSING

Body/Shell Style :

PLUG

Contact Material :

Phosphor Bronze

Current Rating (Max) :

3/Contact(A)

Plating Thickness :

30u inch

JESD-609 Code :

e4

Product :

Accessories

Type :

Shunt

Contact Pattern :

RECTANGULAR

Contact Finish Termination :

Gold (Au) - with Nickel (Ni) barrier

Connector Type :

INTERCONNECTION DEVICE

Factory Lead Time :

29 Weeks

Body Depth :

0.36 inch

Body Orientation :

Straight

Contact Style :

SQ PIN-SKT

Housing Material :

Polyester

Pitch :

2.5400 mm

Base/Housing Material :

Polyester
