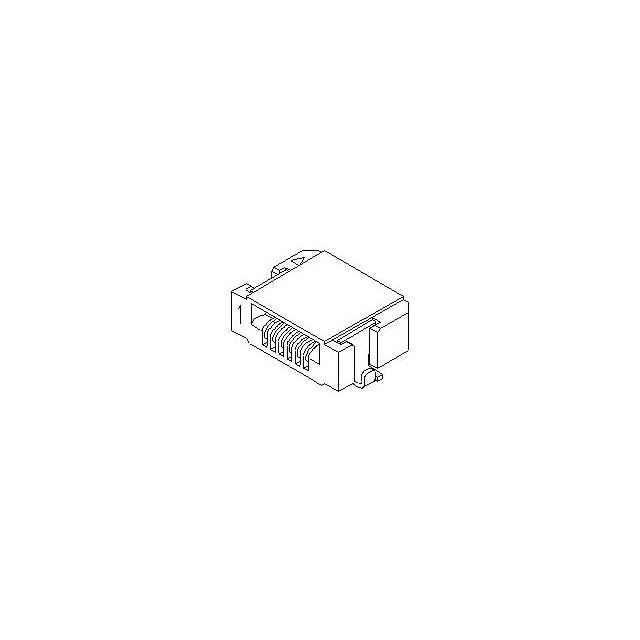

52976-2472

Manufacturer :

Molex

Product Category :

Unclassified

Number of Positions :

24

Lifecycle Status :

OBSOLETE (Last Updated: 4 months ago)

Type :

FFC/FPC CONNECTOR

Mount :

Surface Mount

Base/Housing Material :

Thermoplastic

Operating Temp Range :

-20C to 85C

Current Rating (Max) :

0.4/Contact(A)

Manufacturer Lifecycle Status :

OBSOLETE (Last Updated: 4 months ago)

Housing Material :

Thermoplastic

Current Rating :

400 mA

Number of Rows :

1

Pitch (mm) :

0.5(mm)

Product Length (mm) :

16.5(mm)

Max Operating Temperature :

85 °C

Voltage Rating Max :

50V

Contact Material :

Bronze

Number of Contacts :

24

Termination :

Solder

Packaging :

Tape and Reel

Mounting :

Surface Mount

Contact Plating :

Tin

Pitch :

500 µm

Contact Gender :

Socket

RoHS Status :

RoHS Compliant

Termination Method :

Solder

Orientation :

RIGHT ANGLE

Number of Circuits :

24

Operating Temperature :

-20 to 85 °C

Min Operating Temperature :

-20 °C

Product Height (mm) :

2.42(mm)

Mounting Style :

Surface Mount

Product Depth (mm) :

5.5(mm)

Contact Location :

BOTTOM

Country of Origin :

JP

Radiation Hardening :

No

Voltage Rating :

50 V

Body Orientation :

RIGHT ANGLE

Number of Contact Rows :

1

Housing Color :

Ivory
