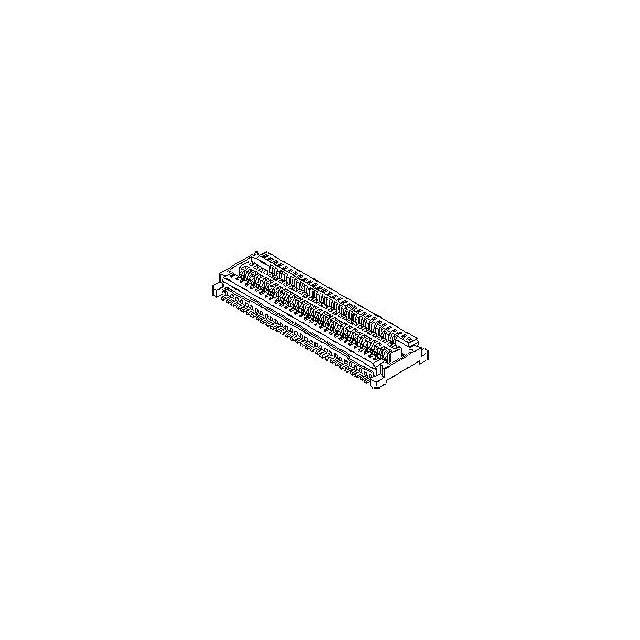

52974-0604

Manufacturer :

Molex

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Option :

GENERAL PURPOSE

MIL Conformance :

No

Orientation :

Vertical

Product Weight (g) :

0.65748

Reliability :

COMMERCIAL

Product Height (mm) :

1.65

Insulation Resistance :

500000000 Ω

Housing Material :

Polymer

Length :

16.7 mm

Number of Positions :

60

EU RoHS :

Compliant

Gender :

RCP

PPAP :

No

Dielectric Withstanding Voltage :

500VAC V

Termination Method :

Solder

Filter Feature :

No

Body Depth :

0.065 inch

Mounting :

Surface Mount

Max Operating Temperature :

105 °C

Plating Thickness :

10u inch

Total Number of Contacts :

60

Number of Circuits :

60

PCB Contact Pattern :

RECTANGULAR

Max Voltage Rating (AC) :

50 V

Operating Temp Range :

-40C to 105C

Contact Resistance :

30 mΩ

Manufacturer :

Molex

Contact Pattern :

RECTANGULAR

Number of Contact Rows :

2

Terminal Pitch :

0.5 mm

UL Flammability Code :

94V-0

JESD-609 Code :

e4

Mounting Type :

BOARD

Connector Type :

Receptacle

Number Of PCB Rows :

2

Automotive :

No

Series :

*

Maximum Operating Temperature (°C) :

105

Maximum Voltage Rating :

50V

Contact Gender :

FEMALE

Mounting Option 1 :

LOCKING

Mated Stacking Heights :

2 mm

Voltage Rating Max :

50V

Type :

Board to Board

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Current Rating (Max) :

0.5/Contact(A)

Number of Rows :

2

Depth :

5.4 mm

ECCN (US) :

EAR99

Schedule B :

8536694040, 8536694040/8536694040/8536694040/8536694040/8536694040

Subcategory :

Headers and Edge Type Connectors

Body Breadth :

0.213 inch

Minimum Operating Temperature (°C) :

-40

Min Operating Temperature :

-40 °C

Mixed Contacts :

No

Pbfree Code :

yes

Product Length (mm) :

16.7

Product Status :

Active

RoHS :

Compliant

Mount :

Surface Mount

Contact Material :

Phosphor Bronze

Body/Shell Style :

Receptacle

PCB Contact Row Spacing :

4.2926 mm

IEC Conformance :

No

Contact Plating :

Gold Over Nickel

Pitch :

500 µm

Contact Finish Termination :

Gold Over Nickel

Package :

Bulk

Packaging :

Tape and Reel

DIN Conformance :

No

Mounting Style :

Surface Mount

Additional Feature :

ROHS,ELV COMPLIANT,TAPE PKG

Reference Standard :

UL

Housing Color :

White

Body Orientation :

Straight

Mating Contact Pitch :

0.02 inch

Reach Compliance Code :

Unknown

Maximum Current Rating (A) :

0.5/Contact

Number of Contacts :

60

Termination Type :

Surface Mount

Rated Current (Signal) :

0.5 A

Termination :

Solder

Insulator Color :

White

Polarization Key :

POLARIZED HOUSING

Pitch (mm) :

0.5(mm)

Product Depth (mm) :

5.4

Terminal Pitch (mm) :

0.5
