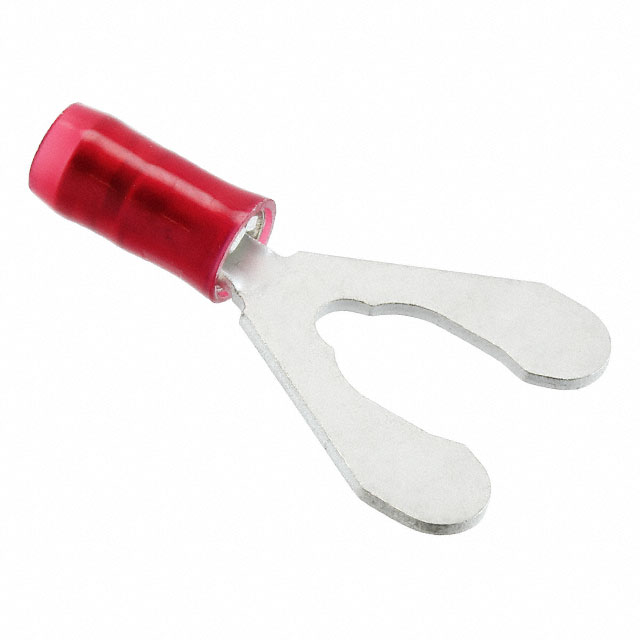

52933
Or copy the link below:
- Mfr.Part #
- 52933
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 16-22AWG #1/4
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Wire Size (Max) :
- 26 AWG
- Stud/Tab Size :
- 1/4 Stud
- Termination :
- Crimp
- Stud Diameter :
- 6.35 mm
- Series :
- PIDG
- Width - Outer Edges :
- 0.625 15.88mm
- Mount :
- Free Hanging
- Lead Free :
- Not Applicable
- ELV :
- Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Insulation Diameter :
- 0.080 ~ 0.125 (2.03mm ~ 3.18mm)
- Wire Gauge :
- 16-22 AWG
- Reliability :
- COMMERCIAL
- Thickness :
- 840μm
- Voltage - Rated AC :
- 300V
- Tongue Thickness :
- 790μm
- Diameter - Inside :
- 3.2512 mm
- Width :
- 15.88mm
- Tongue Inside Opening :
- 0.250 (6.35mm)
- Stud Size :
- M6
- Wire Gauge (Max) :
- 16 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mating Contact Pitch :
- 0.085 inch
- Contact Gender :
- Male
- Feature :
- Serrated Termination
- Total Number of Contacts :
- 64
- Number of Rows :
- 2
- Color :
- Red
- Material - Insulation :
- Polyamide (PA), Nylon
- Contact Finish :
- Tin
- Material :
- Bronze
- Wire/Cable Diameter :
- 4.318 mm
- Factory Lead Time :
- 18 Weeks
- Insulation :
- Insulated
- RoHS Status :
- RoHS Compliant
- Length - Ring Center to Termination :
- 0.343 8.71mm
- Packaging :
- Bulk
- Mounting Type :
- Free Hanging (In-Line)
- Length :
- 26.2382mm
- Body Breadth :
- 0.6 inch
- Contact Pattern :
- RECTANGULAR
- Reference Standard :
- UL, CSA
- Insulated Wire Support :
- yes
- Length - Termination :
- 0.404 10.26mm
- Heavy Duty :
- No
- Wire Gauge (Min) :
- 22 AWG
- Rated Current (Signal) :
- 3.5A
- Length - Overall :
- 1.033 26.24mm
- Terminal Type :
- Spring, Snap
- Wire Size (Min) :
- 26 AWG
- Published :
- 1999
- Contact Design :
- PREASSEM CONN
- Contact Material :
- Phosphor Bronze
- Body/Shell Style :
- Receptacle
- Datasheets
- 52933
52933 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
