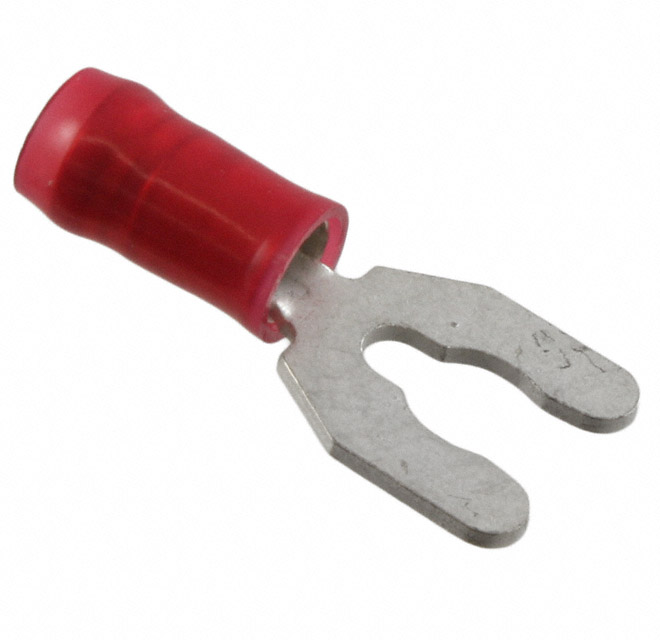

52930-3
Or copy the link below:
- Mfr.Part #
- 52930-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 16-22AWG #8 RED
- Stock
- 3,722
- In Stock ：
- 3,722
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Stud Size :
- M4
- Gender :
- FEMALE
- Contact Finish :
- Tin
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Length - Ring Center to Termination :
- 0.281 7.14mm
- Mounting Type :
- Free Hanging (In-Line)
- Mount :
- Free Hanging
- Wire/Cable Diameter :
- 3.556 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Heavy Duty :
- No
- Length :
- 21.844mm
- RoHS Status :
- RoHS Compliant
- Wire Gauge (Min) :
- 16 AWG
- Insulation :
- Insulated
- Terminal Type :
- Spring, Snap
- Wire Gauge :
- 16-22 AWG
- Stud/Tab Size :
- 8 Stud
- HTS Code :
- 8536.90.40.00
- Length - Termination :
- 0.404 10.26mm
- Insulated Wire Support :
- yes
- Factory Lead Time :
- 4 Weeks
- Length - Overall :
- 0.860 21.84mm
- Wire Cross Section :
- 1.65 mm2
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Packaging :
- Tape and Reel (TR)
- Lead Free :
- Not Applicable
- Wire Gauge (Max) :
- 22 AWG
- Tongue Thickness :
- 790μm
- Insulation Diameter :
- 0.105 ~ 0.140 (2.67mm ~ 3.56mm)
- ECCN Code :
- EAR99
- Feature :
- Serrated Termination
- Published :
- 1999
- Series :
- PIDG
- ELV :
- Compliant
- Termination :
- Crimp
- Material - Insulation :
- Polyamide (PA), Nylon
- Contact Material :
- Copper
- Tongue Inside Opening :
- 0.164 (4.17mm)
- Material :
- Bronze
- Voltage - Rated AC :
- 300V
- Width - Outer Edges :
- 0.375 9.53mm
- Stud Diameter :
- 4.17 mm
- Color :
- Red
- Datasheets
- 52930-3
52930-3 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
