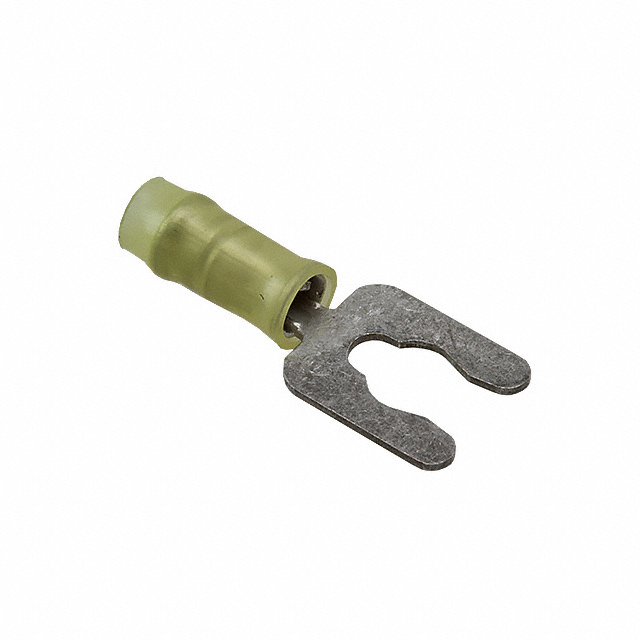

52923
Or copy the link below:
- Mfr.Part #
- 52923
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 22-26AWG #5 YEL
- Stock
- 339
- In Stock ：
- 339
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- Published :
- 1999
- Mount :
- Free Hanging
- Terminal and Terminal Block Type :
- FORK TERMINAL
- Insulated Wire Support :
- yes
- HTS Code :
- 8536.90.40.00
- Wire/Cable Diameter :
- 2.08 mm
- Length - Ring Center to Termination :
- 0.203 5.16mm
- Termination :
- Crimp
- Tongue Inside Opening :
- 0.130 (3.30mm)
- ECCN Code :
- EAR99
- Voltage - Rated AC :
- 300V
- Stud Size :
- M3
- RoHS Status :
- RoHS Compliant
- Contact Finish :
- Tin
- Heavy Duty :
- No
- Wire Gauge :
- 22-26 AWG
- Length :
- 17.2466mm
- Feature :
- Serrated Termination
- Wire Gauge (Max) :
- 26 AWG
- Tongue Thickness :
- 500μm
- Color :
- Yellow
- Insulation :
- Insulated
- Stud/Tab Size :
- 5 Stud
- Factory Lead Time :
- 29 Weeks
- Wire Gauge (Min) :
- 22 AWG
- Material - Insulation :
- Polyamide (PA), Nylon
- Pbfree Code :
- yes
- ELV :
- Compliant
- Lead Free :
- Not Applicable
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Length - Termination :
- 0.331 8.41mm
- Stud Diameter :
- 3.18 mm
- Length - Overall :
- 0.679 17.25mm
- Packaging :
- Bulk
- Terminal Type :
- Spring, Snap
- Width - Outer Edges :
- 0.250 6.35mm
- Mounting Type :
- Free Hanging (In-Line)
- Series :
- PIDG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Diameter :
- 0.050 ~ 0.082 (1.27mm ~ 2.08mm)
- Material :
- Bronze
- Contact Material :
- Phosphor Bronze
- Datasheets
- 52923
52923 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
