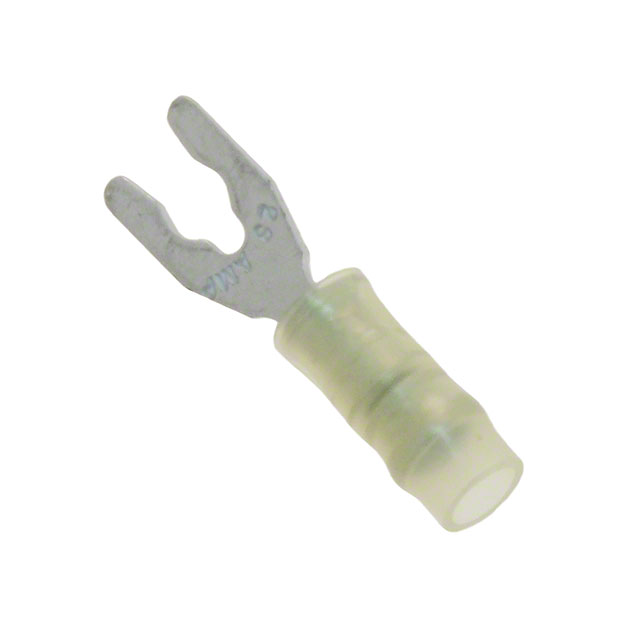

52921
Or copy the link below:
- Mfr.Part #
- 52921
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SPADE TERM 22-26AWG #2 YEL
- Stock
- 3,884
- In Stock ：
- 3,884
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Spade Connectors
- RoHS Status :
- RoHS Compliant
- Terminal Type :
- Spring, Snap
- Stud Diameter :
- 2.18 mm
- Insulated Wire Support :
- yes
- Feature :
- Serrated Termination
- Wire Gauge :
- 22-26 AWG
- Lead Free :
- Not Applicable
- Length - Termination :
- 0.331 8.41mm
- Stud/Tab Size :
- 2 Stud
- Wire/Cable Diameter :
- 6.35 mm
- Insulation Diameter :
- 0.050 ~ 0.082 (1.27mm ~ 2.08mm)
- Depth :
- 4.34mm
- Tongue Inside Opening :
- 0.086 (2.18mm)
- Tongue Thickness :
- 500μm
- Termination :
- Crimp
- Contact Plating :
- Tin
- Factory Lead Time :
- 29 Weeks
- Contact Finish :
- Tin
- Mounting Type :
- Free Hanging (In-Line)
- Length - Overall :
- 0.651 16.54mm
- Stud Size :
- M2
- Packaging :
- Bulk
- Government Qualified :
- No
- Length - Ring Center to Termination :
- 0.206 5.23mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge (Max) :
- 22 AWG
- Heavy Duty :
- No
- Insulation :
- Insulated
- Material - Insulation :
- Polyamide (PA), Nylon
- Width - Outer Edges :
- 0.171 4.34mm
- Plating :
- Tin
- Series :
- PIDG
- Contact Material :
- Phosphor Bronze
- Body Plating :
- Tin
- Voltage - Rated AC :
- 300V
- Color :
- Yellow
- Published :
- 1999
- Wire Gauge (Min) :
- 26 AWG
- Mount :
- Free Hanging
- Material :
- Bronze
- Sealable :
- No
- Length :
- 16.5354mm
- ELV :
- Compliant
- Body Material :
- Bronze
- Datasheets
- 52921
52921 datasheet pdf and Terminals - Spade Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
